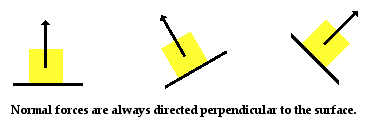

The Abnormal Normal Force

The first peculiarity of inclined plane problems is that the normal force is not directed in the direction that we are accustomed to. Up to this point in the course, we have always seen normal forces acting in an upward direction, opposite the direction of the force of gravity. But this is only because the objects were always on horizontal surfaces and never upon inclined planes. The truth about normal forces is not that they are always upwards, but rather that they are always directed perpendicular to the surface that the object is on.

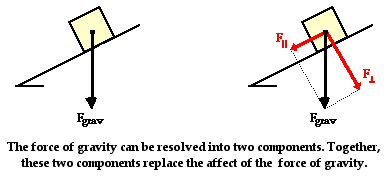

The Components of the Gravity Force

The task of determining the net force acting upon an object on an inclined plane is a difficult manner since the two (or more) forces are not directed in opposite directions. Thus, one (or more) of the forces will have to be resolved into perpendicular components so that they can be easily added to the other forces acting upon the object. Usually, any force directed at an angle to the horizontal is resolved into horizontal and vertical components. However, this is not the process that we will pursue with inclined planes. Instead, the process of analyzing the forces acting upon objects on inclined planes will involve resolving the weight vector (F_grav) into two perpendicular components. This is the second peculiarity of inclined plane problems. The force of gravity will be resolved into two components of force - one directed parallel to the inclined surface and the other directed perpendicular to the inclined surface. The diagram below shows how the force of gravity has been replaced by two components - a parallel and a perpendicular component of force.

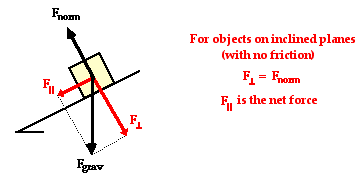

The perpendicular component of the force of gravity is directed opposite the normal force and as such balances the normal force. The parallel component of the force of gravity is not balanced by any other force. This object will subsequently accelerate down the inclined plane due to the presence of an unbalanced force. It is the parallel component of the force of gravity that causes this acceleration. The parallel component of the force of gravity is the net force.

The task of determining the magnitude of the two components of the force of gravity is a mere manner of using the equations. The equations for the parallel and perpendicular components are:

In the absence of friction and other forces (tension, applied, etc.), the acceleration of an object on an incline is the value of the parallel component (m*g*sine of angle) divided by the mass (m). This yields the equation

(in the absence of friction and other forces)

Simplifying an Inclined Plane Problem

In the presence of friction or other forces (applied force, tensional forces, etc.), the situation is slightly more complicated. Consider the diagram shown at the right. The perpendicular component of force still balances the normal force since objects do not accelerate perpendicular to the incline. Yet the frictional force must also be considered when determining the net force. As in all net force problems, the net force is the vector sum of all the forces. That is, all the individual forces are added together as vectors. The perpendicular component and the normal force add to 0 N. The parallel component and the friction force add together to yield 5 N. The net force is 5 N, directed along the incline towards the floor.

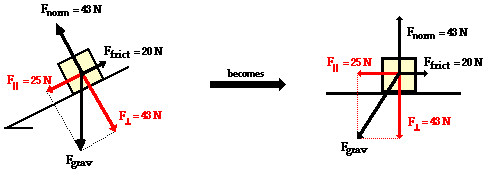

The above problem (and all inclined plane problems) can be simplified through a useful trick known as "tilting the head." An inclined plane problem is in every way like any other net force problem with the sole exception that the surface has been tilted. Thus, to transform the problem back into the form with which you are more comfortable, merely tilt your head in the same direction that the incline was tilted. Or better yet, merely tilt the page of paper (a sure remedy for TNS - "tilted neck syndrome" or "taco neck syndrome") so that the surface no longer appears level. This is illustrated below.

Once the force of gravity has been resolved into its two components and the inclined plane has been tilted, the problem should look very familiar. Merely ignore the force of gravity (since it has been replaced by its two components) and solve for the net force and acceleration.

As an example consider the situation depicted in the diagram at the right. The free-body diagram shows the forces acting upon a 100-kg crate that is sliding down an inclined plane. The plane is inclined at an angle of 30 degrees. The coefficient of friction between the crate and the incline is 0.3. Determine the net force and acceleration of the crate.

Begin the above problem by finding the force of gravity acting upon the crate and the components of this force parallel and perpendicular to the incline. The force of gravity is 980 N and the components of this force are F_parallel = 490 N (980 N • sin 30 degrees) and F_{perpendicular} = 849 N (980 N • cos30 degrees). Now the normal force can be determined to be 849 N (it must balance the perpendicular component of the weight vector). The force of friction can be determined from the value of the normal force and the coefficient of friction; F_frict is 255 N (F_frict = "mu"*F_norm= 0.3 • 849 N). The net force is the vector sum of all the forces. The forces directed perpendicular to the incline balance; the forces directed parallel to the incline do not balance. The net force is 235 N (490 N - 255 N). The acceleration is 2.35 m/s/s (F_net/m = 235 N/100 kg).

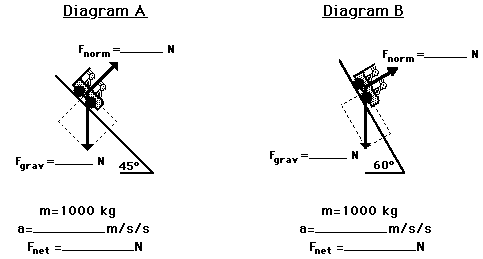

The two diagrams below depict the free-body diagram for a 1000-kg roller coaster on the first drop of two different roller coaster rides. Use the above principles of vector resolution to determine the net force and acceleration of the roller coaster cars. Assume a negligible effect of friction and air resistance. When done, click the button to view the answers.

See Answer to Diagram A



The F_grav can be calculated from the mass of the object.

F_grav = m • g = (1000 kg) • (9.8 m/s/s) = 9800 N

The parallel and perpendicular components of the gravity force can be determined from their respective equations:

F_parallel = m • g • sin (45 degrees) = 6930 N

F_{perpendicular} = m • g • cos (45 degrees) = 6930 N

The forces directed perpendicular to the incline balance each other. Thus F_norm is equal to F_{perpendicular}.

F_norm = 6930 N

There is no other force parallel to the incline to counteract the parallel component of gravity. Thus, the net force is equal to the F_parallel value.

F_net = 6930 N, down the incline

The acceleration is can be found from a = F_net / m :

 a = F_net / m = (6930 N) / (1000 kg)

a = 6.93 m/s/s, down the incline

See Answer to Diagram B



The F_grav can be calculated from the mass of the object.

F_grav = m • g = (1000 kg) • (9.8 m/s/s) = 9800 N

The parallel and perpendicular components of the gravity force can be determined from their respective equations:

F_parallel = m • g • sin (60 degrees) = 8487 N

F_{perpendicular} = m • g • cos (60 degrees) = 4900 N

The forces directed perpendicular to the incline balance each other. Thus F_norm is equal to F_{perpendicular}.

F_norm = 4900 N

There is no other force parallel to the incline to counteract the parallel component of gravity. Thus, the net force is equal to the F_parallel value.

F_net = 8487 N, down the incline

The acceleration is can be found from a = F_net / m :

 a = F_net / m = (8487 N) / (1000 kg)

a = 8.49 m/s/s, down the incline

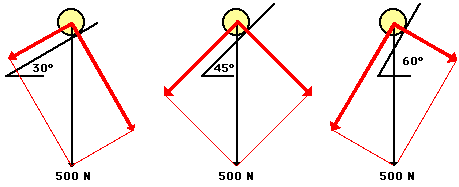

The effects of the incline angle on the acceleration of a roller coaster (or any object on an incline) can be observed in the two practice problems above. As the angle is increased, the acceleration of the object is increased. The explanation of this relates to the components that we have been drawing. As the angle increases, the component of force parallel to the incline increases and the component of force perpendicular to the incline decreases. It is the parallel component of the weight vector that causes the acceleration. Thus, accelerations are greater at greater angles of incline. The diagram below depicts this relationship for three different angles of increasing magnitude.

Some Roller Coaster Physics

Roller coasters produce two thrills associated with the initial drop down a steep incline. The thrill of acceleration is produced by using large angles of incline on the first drop; such large angles increase the value of the parallel component of the weight vector (the component that causes acceleration). The thrill of weightlessness is produced by reducing the magnitude of the normal force to values less than their usual values. It is important to recognize that the thrill of weightlessness is a feeling associated with a lower than usual normal force. Typically, a person weighing 700 N will experience a 700 N normal force when sitting in a chair. However, if the chair is accelerating down a 60-degrees incline, then the person will experience a 350 Newton normal force. This value is less than normal and contributes to the feeling of weighing less than one's normal weight - i.e., weightlessness.

The following questions are intended to test your understanding of the mathematics and concepts of inclined planes. Once you have answered the question, click the button to see the answers.

1. Two boys are playing ice hockey on a neighborhood street. A stray puck travels across the friction-free ice and then up the friction-free incline of a driveway. Which one of the following ticker tapes (A, B, or C) accurately portrays the motion of the puck as it travels across the level street and then up the driveway?

Explain your answer.

See Answer



B is the correct answer; it shows a constant velocity while traveling across the level surface (which is not shown in C) and it shows the deceleration which would be expected while traveling up a frictionless incline (which is not shown in A).

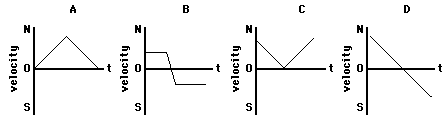

2. Little Johnny stands at the bottom of the driveway and kicks a soccer ball. The ball rolls northward up the driveway and then rolls back to Johnny. Which one of the following velocity-time graphs (A, B, C, or D) most accurately portrays the motion of the ball as it rolls up the driveway and back down?

Explain your answer.

See Answer



Graph D is the correct answer. Initially, the ball has a northward velocity and is slowing down. For an instant in time, it has a zero velocity. Then the ball moves with a southward velocity (i.e., in the opposite direction) and speeds up. At all times the ball has a "negative" (southward) acceleration. These features are all depicted in Graph D.

3. A golf ball is rolling across a horizontal section of the green on the 18th hole. It then encounters a steep downward incline (see diagram). Friction is involved. Which of the following ticker tape patterns (A, B, or C) might be an appropriate representation of the ball's motion?

Explain why the inappropriate patterns are inappropriate.

See Answer



B is the correct answer.

Tapes A and C can both be ruled out since they show the golf ball moving with constant velocity across the frictional surface. The ball should be slowing down. Tape B shows an acceleration while moving down the hill which would be likely due to the presence of a parallel component of the weight vector.

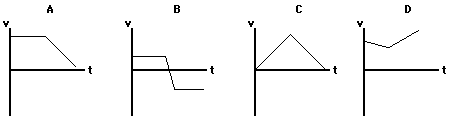

4. Missy dePenn's eighth frame in the Wednesday night bowling league was a disaster. The ball rolled off the lane, passed through the freight door in the building's rear, and then down the driveway. Millie Meater (Missy's teammate), who was spending every free moment studying for her physics test, began visualizing the velocity-time graph for the ball's motion. Which one of the velocity-time graphs (A, B, C, or D) would be an appropriate representation of the ball's motion as it rolls across the horizontal surface and then down the incline? Consider frictional forces.

See Answer



Graph D is the appropriate representation.

The ball will slow down due to friction while moving across the level surface and it will speed up due to the parallel component of the weight vector while moving down the incline. Graph D depicts both of these features.

5. Three lab partners - Olive N. Glenveau, Glen Brook, and Warren Peace - are discussing an incline problem (see diagram). They are debating the value of the normal force. Olive claims that the normal force is 250 N; Glen claims that the normal force is 433 N; and Warren claims that the normal force is 500 N. While all three answers seem reasonable, only one is correct. Indicate which two answers are wrong and explain why they are wrong.

See Answer



Only Glen is correct.

Warren is incorrect because he evidently believes that the normal force is equal to the force of gravity. This is only true on level surfaces when the normal force is the only up force. Here the normal force is perpendicular to the surface and equal to the perpendicular component of gravity's pull.

Olive is incorrect because she has evidently used the wrong equation for computing the perpendicular component of the weight vector. The parallel component is 250 N (m*g*sine 30 degrees). But the normal force is equal to the perpendicular component of the weight vector (m*g*cosine 30 degrees).

6. Lon Scaper is doing some lawn work when a 2-kg tire escapes from his wheelbarrow and begins rolling down a steep hill (a 30° incline) in San Francisco. Sketch the parallel and perpendicular components of this weight vector. Determine the magnitude of the components using trigonometric functions. Then determine the acceleration of the tire. Ignore resistance force.

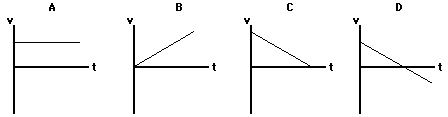

Finally, determine which one of the velocity-time graph would represent the motion of the tire as it rolls down the incline.

Explain your answer.

See Answer



The F_grav can be calculated from the mass of the object.

F_grav = m • g = (2 kg) • (9.8 m/s/s) = 19.6 N

The parallel and perpendicular components of the gravity force can be determined from their respective equations:

F_parallel = 19.6 N  • sin (30 degrees) = 9.8 N

F_{perpendicular} = 19.6 N  • cos (30 degrees) = 17.0 N

The acceleration of the tire is the ratio of net force to mass:

a = F_net / m = (9.8 N) / (2 kg) = 4.9 m/s/s

The correct graph is Graph B since the tire will accelerate (speed up) down the hill.

7. In each of the following diagrams, a 100-kg box is sliding down a frictional surface at a constant speed of 0.2 m/s. The incline angle is different in each situation. Analyze each diagram and fill in the blanks.

See Answer



The F_grav can be calculated from the mass of the object.

F_grav = m • g = (100 kg) • (9.8 m/s/s) = 980 N

The parallel and perpendicular components of the gravity force can be determined from their respective equations:

F_parallel = m • g • sin (30 degrees) = 490 N

F_{perpendicular} = m • g • cos (30 degrees) = 849 N

For a constant speed motion, the forces parallel to the incline must balance each other. Thus, the F_frict is equal to the F_parallel.

F_frict = 490 N

The forces directed perpendicular to the incline balance each other. Thus F_norm is equal to F_{perpendicular}.

F_norm = 849 N





See Answer



The F_grav can be calculated from the mass of the object.

F_grav = m • g = (100 kg) • (9.8 m/s/s) = 980 N

The parallel and perpendicular components of the gravity force can be determined from their respective equations:

F_parallel = m • g • sin (45 degrees) = 693 N

F_{perpendicular} = m • g • cos (45 degrees) = 693 N

For a constant speed motion, the forces parallel to the incline must balance each other. Thus, the F_frict is equal to the F_parallel.

F_frict = 693 N

The forces directed perpendicular to the incline balance each other. Thus F_norm is equal to F_{perpendicular}.

F_norm = 693 N
