Torque-ing About Rotation - Questions

The Torque-ing About Rotation Concept Builder is comprised of 27 questions. The questions are divided into nine different question groups. Questions in the same group are rather similar to one another. The Concept Builder is coded to select at random a question from each group until a student is successful with that group of questions.

There are four levels of difficulty by which the student can progress through the Concept Builder. Those four difficulty levels are differentiated as follows:


• Apprentice Level: Question Groups 1-3
• Masters Level: Question Groups 4-6
• Wizard Level: QuestionGroups 7-9

The questions from each group are shown below. Teachers are encouraged to view the questions in order to judge which level of difficulty is most appropriate for their classes. We recommend doing all three difficulty levels. None of the questions take much time and all provide a wonderful feel for the concept of torque and its ability to cause a rotation about the fulcrum if unbalanced by an opposing torque.

The Physics Classroom grants teachers and other users the right to print these questions for private use. Users are also granted the right to copy the text and modify it for their own use. However, this document should not be uploaded to other servers for distribution to and/or display by others. The Physics Classroom website should remain the only website or server from which the document is distributed or displayed. We also provide a PDF that teachers can use under the same conditions. We have included a link to the PDF near the bottom of this page.




Apprentice Level
Question Group 1

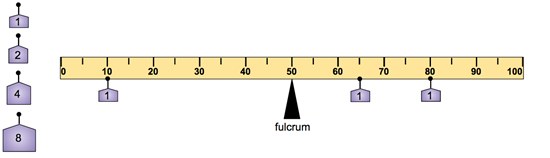

Question 1
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.


Question 2
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.

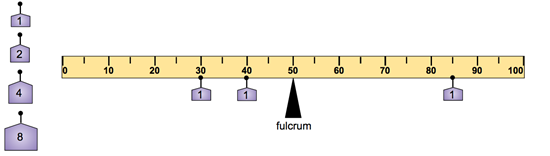

Question 3
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.



Question Group 2

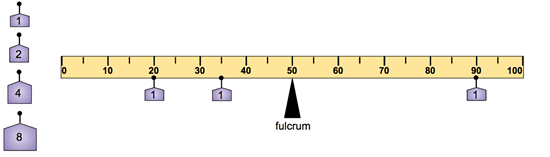

Question 4
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.

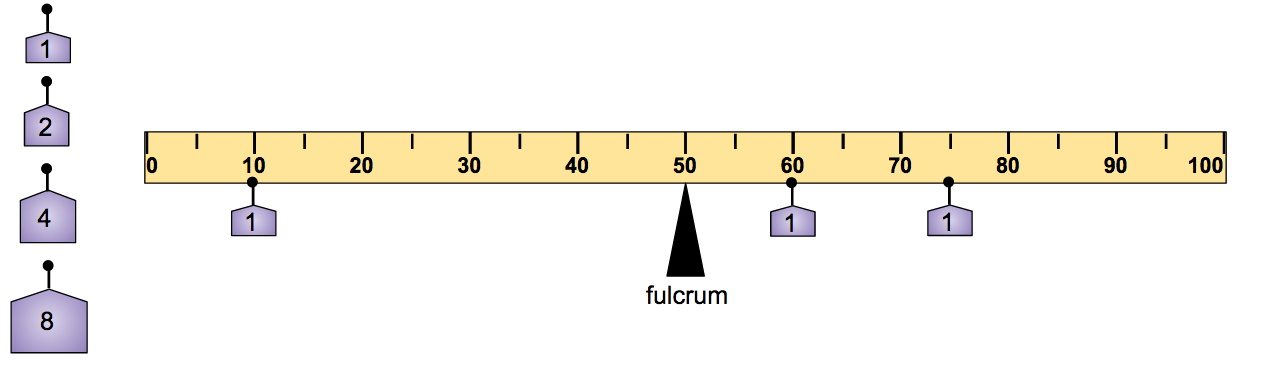

Question 5
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.

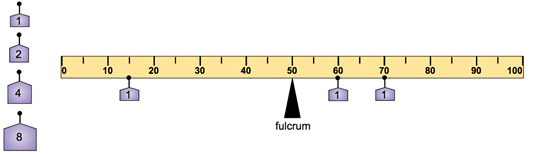

Question 6
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.


Question Group 3

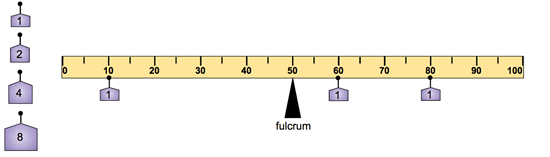

Question 7
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.

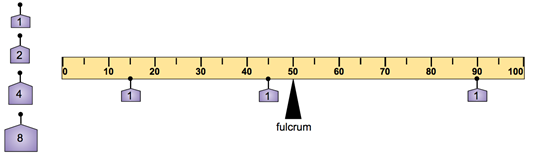

Question 8
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.

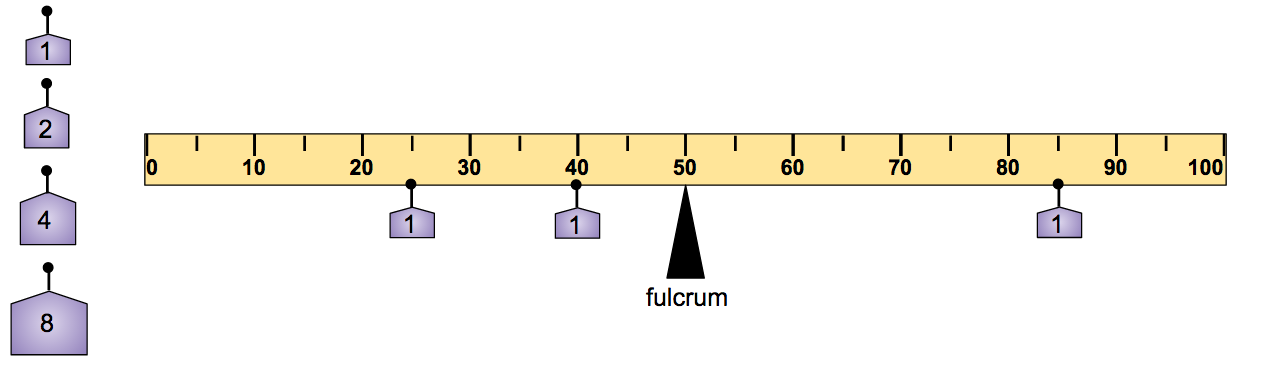

Question 9
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.



Master Level
Question Group 4

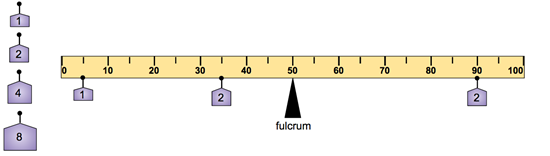

Question 10
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.

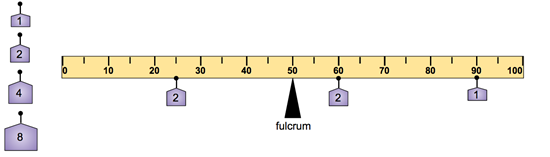

Question 11
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.

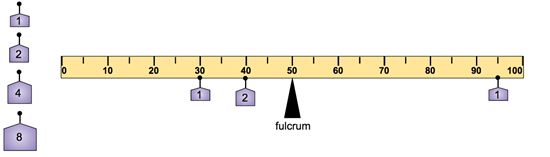

Question 12
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.


Question Group 5

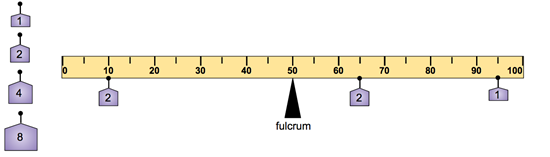

Question 13
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.

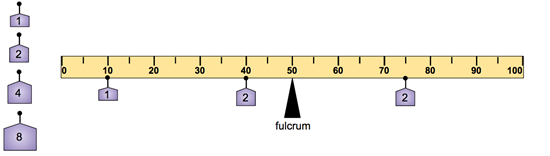

Question 14
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.

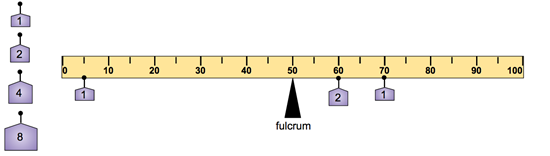

Question 15
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.



Question Group 6

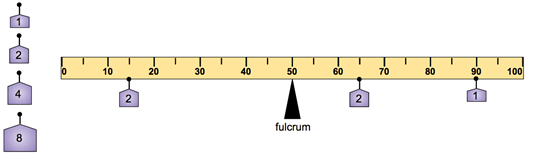

Question 16
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.

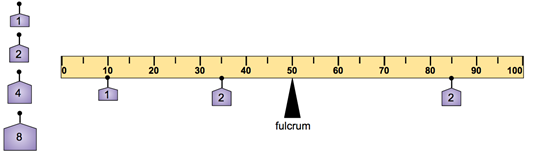

Question 17
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.

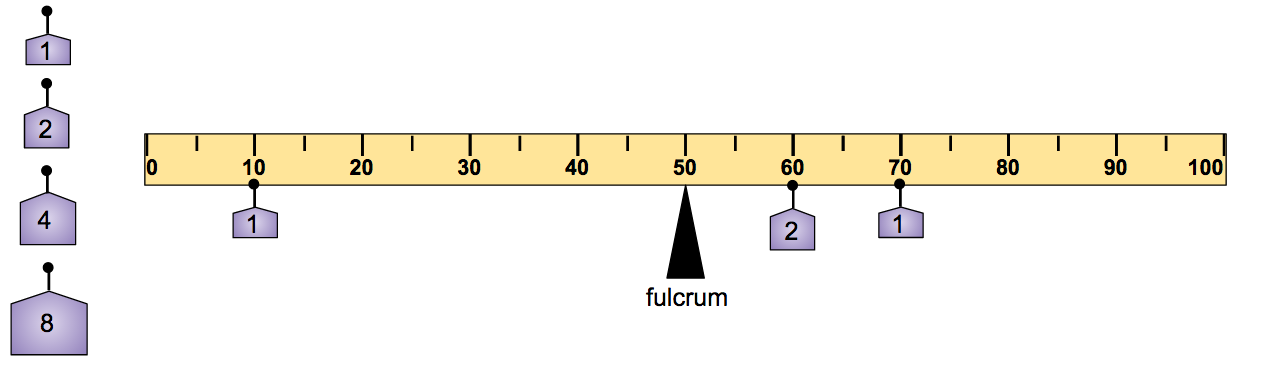

Question 18
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.



Wizard Level
Question Group 7

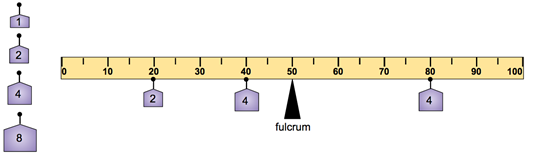

Question 19
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.

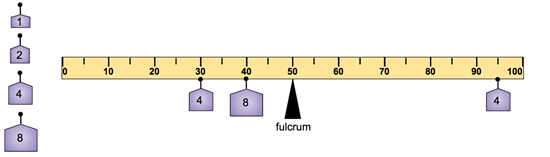

Question 20
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.

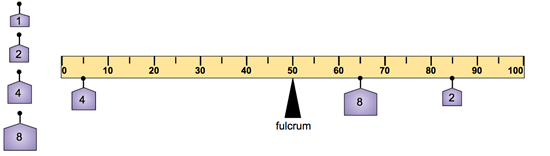

Question 21
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.


Question Group 8

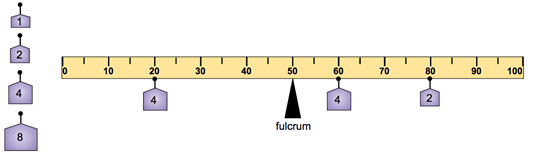

Question 22
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.

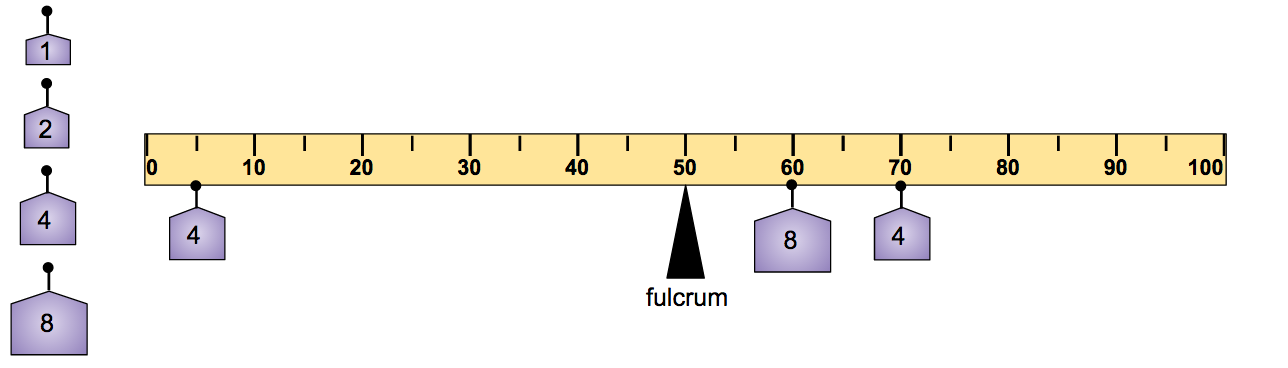

Question 23
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.

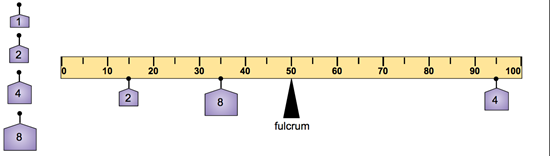

Question 24
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.



Question Group 9

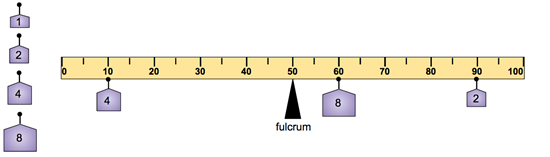

Question 25
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.

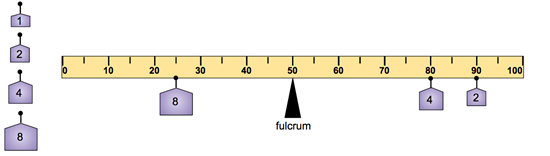

Question 26
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.

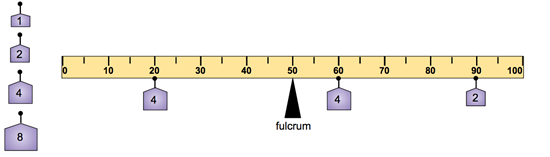

Question 27
Which way will the meter stick rotate around the fulcrum if the objects are hung on the stick as shown? Each object is labeled with its mass in kilograms.
