Pendulum Motion: Velocity and Force Analysis - Questions
The Pendulum Motion: Velocity and Force Analysis Concept Builder is comprised of 56 questions. The questions are divided into 14 different Question Groups. Questions in the same group are rather similar to one another. The Concept Builder is coded to select at random a question from each group until a student is successful with that group of questions.
There are three different activities that can be engaged in through the Concept Builder. Those three activities are differentiated as follows:
- v and F Comparison: Question Groups 1 - 4 ... Identify the locations along a pendulum’s path where the speed and restoring force is smallest, greatest, and zero.
- Vector Analysis: Question Groups 5 - 8 ... Identify the direction of the velocity vector, the tension force and the gravity force at various locations along a pendulum’s path.
- Graphical Analysis: Question Groups 9 - 14 ... Relate the various sections of a velocity-time plot for a pendulum bob to the location of the bob along its path.
The questions from each group are shown below. Teachers are encouraged to view the questions in order to judge which activities are most appropriate for their classes. We recommend providing students two or more options.
The Physics Classroom grants teachers and other users the right to print these questions for private use. Users are also granted the right to copy the text and modify it for their own use. However, this document should not be uploaded to other servers for distribution to and/or display by others. The Physics Classroom website should remain the only website or server from which the document is distributed or displayed. We also provide a PDF that teachers can use under the same conditions. We have included a link to the PDF near the bottom of this page.
Pendulum Motion: Velocity and Force Analysis
Activity 1: Speed and Force Comparison
Question Group 1
Question 1
A pendulum is swinging back and forth. Three points along its circular arc are shown. At which location is the pendulum moving with the
greatest speed?
Question 2
A pendulum is swinging back and forth. Three points along its circular arc are shown. At which location is the pendulum moving with the
smallest speed?
Question 3
A pendulum is swinging back and forth. Three points along its circular arc are shown. At which location is the pendulum moving with the
greatest speed?
Question 4
A pendulum is swinging back and forth. Three points along its circular arc are shown. At which location is the pendulum moving with the
smallest speed?
Question Group 2
Question 5
A pendulum is swinging back and forth. Three points along its circular arc are shown. At which location is the pendulum experiencing the
greatest restoring force?
Question 6
A pendulum is swinging back and forth. Three points along its circular arc are shown. At which location is the pendulum experiencing the
smallest restoring force?
Question 7
A pendulum is swinging back and forth. Three points along its circular arc are shown. At which location is the pendulum experiencing the
greatest restoring force?
Question 8
A pendulum is swinging back and forth. Three points along its circular arc are shown. At which location is the pendulum experiencing the
smallest restoring force?
Question Group 3
Question 9
A pendulum is swinging back and forth. Three points along its circular arc are shown. The highest point reached by the pendulum is location A. At which location is the pendulum experiencing a
0 N restoring force?
Question 10
A pendulum is swinging back and forth. Three points along its circular arc are shown. The highest point reached by the pendulum is location A. At which location is the pendulum experiencing a
0 N restoring force?
Question 11
A pendulum is swinging back and forth. Three points along its circular arc are shown. The highest point reached by the pendulum is location C. At which location is the pendulum experiencing a
0 N restoring force?
Question 12
A pendulum is swinging back and forth. Three points along its circular arc are shown. The highest point reached by the pendulum is location C. At which location is the pendulum experiencing a
0 N restoring force?
Question Group 4
Question 13
A pendulum is swinging back and forth. Three points along its circular arc are shown. The highest point reached by the pendulum is location A. At which location is the pendulum experiencing a
zero speed?
Question 14
A pendulum is swinging back and forth. Three points along its circular arc are shown. The highest point reached by the pendulum is location A. At which location is the pendulum experiencing a
zero speed?
Question 15
A pendulum is swinging back and forth. Three points along its circular arc are shown. The highest point reached by the pendulum is location C. At which location is the pendulum experiencing a
zero speed?
Question 16
A pendulum is swinging back and forth. Three points along its circular arc are shown. The highest point reached by the pendulum is location C. At which location is the pendulum experiencing a
zero speed?
Activity 2: Vector Analysis
Question Group 5
Question 17

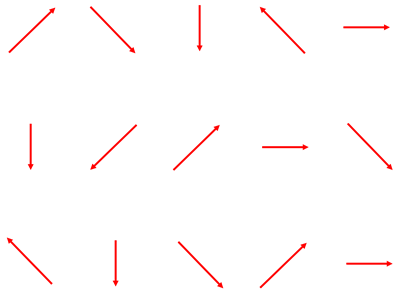

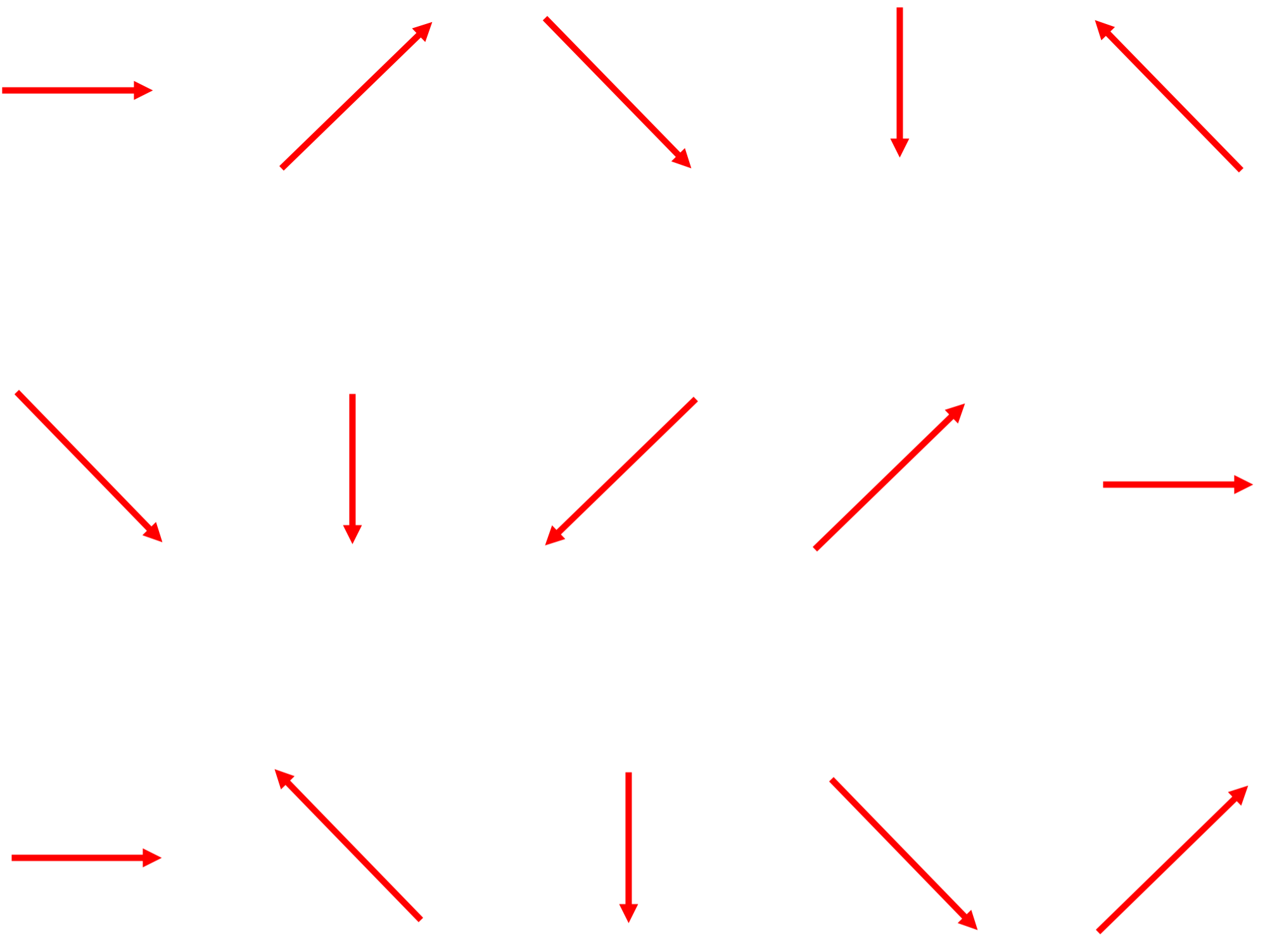

A pendulum is swinging back and forth along its circular arc. At the indicated position, the pendulum is swinging towards its middle position. Identify the vector arrow that best represents the velocity, tension force, and gravity force experienced by the pendulum at this location.
Question 18
A pendulum is swinging back and forth along its circular arc. At the indicated position, the pendulum is swinging towards its middle position. Identify the vector arrow that best represents the velocity, tension force, and gravity force experienced by the pendulum at this location.

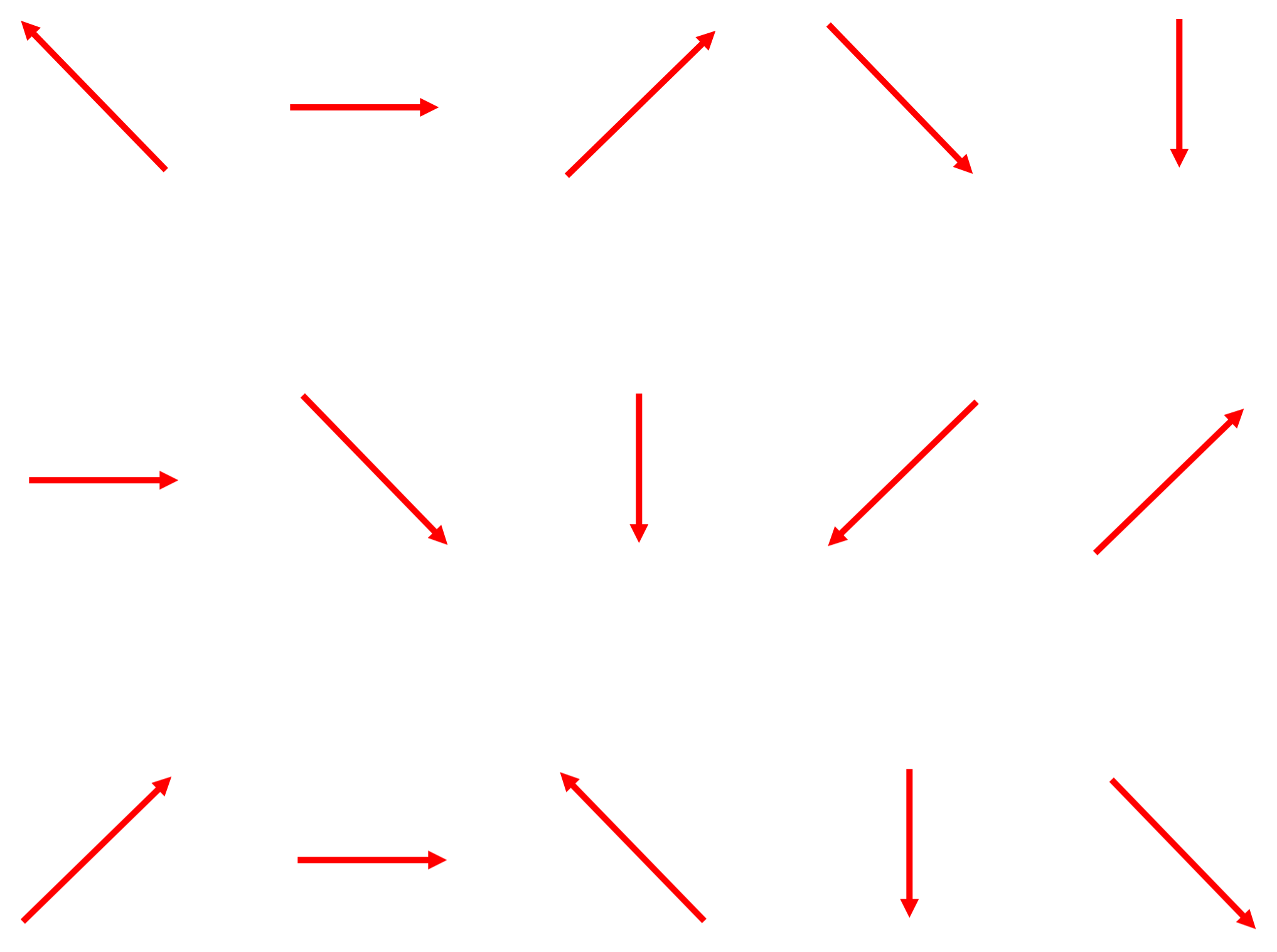

Question 19
A pendulum is swinging back and forth along its circular arc. At the indicated position, the pendulum is swinging towards its middle position. Identify the vector arrow that best represents the velocity, tension force, and gravity force experienced by the pendulum at this location.

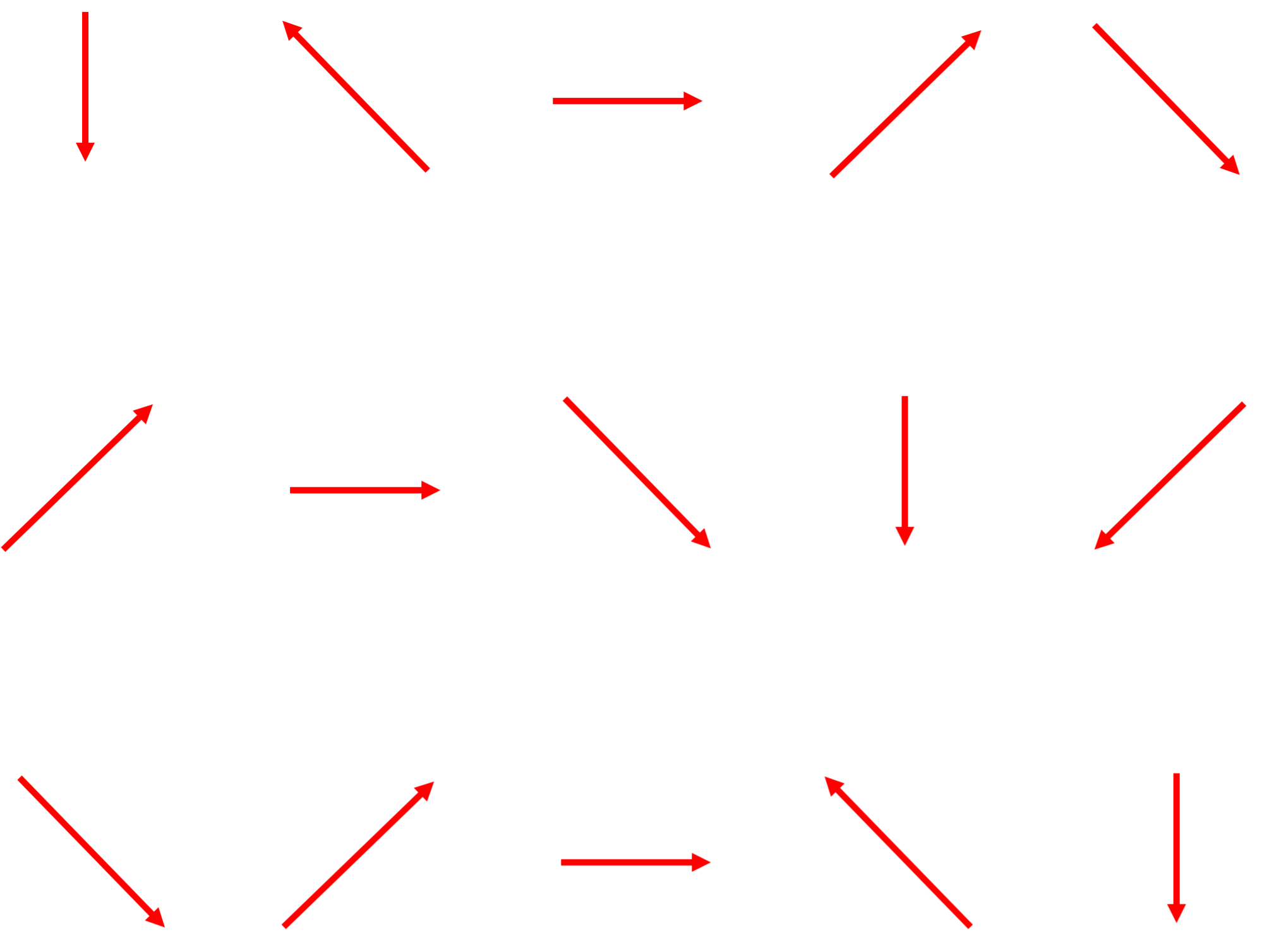

Question 20
A pendulum is swinging back and forth along its circular arc. At the indicated position, the pendulum is swinging towards its middle position. Identify the vector arrow that best represents the velocity, tension force, and gravity force experienced by the pendulum at this location.
Question Group 6
Question 21

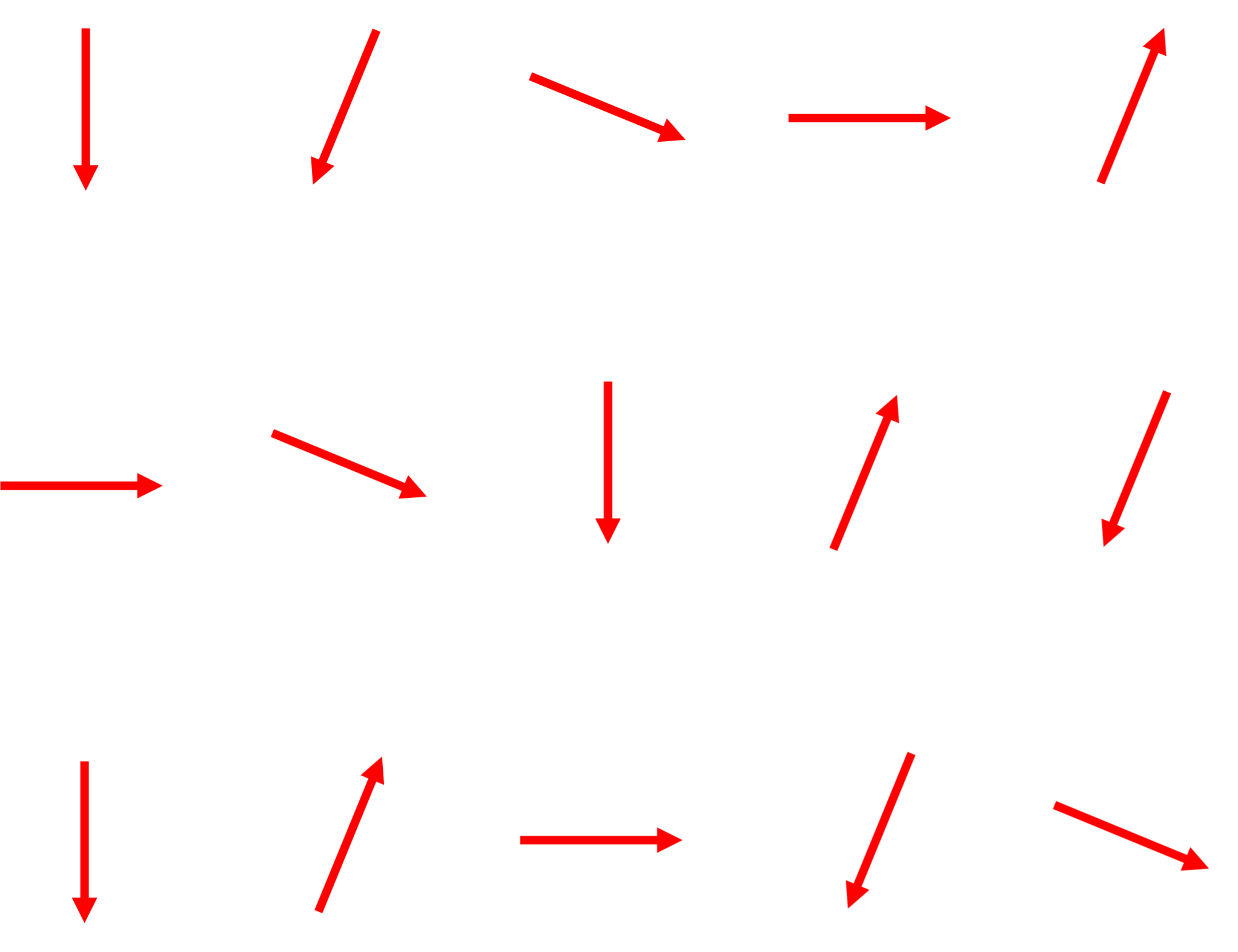

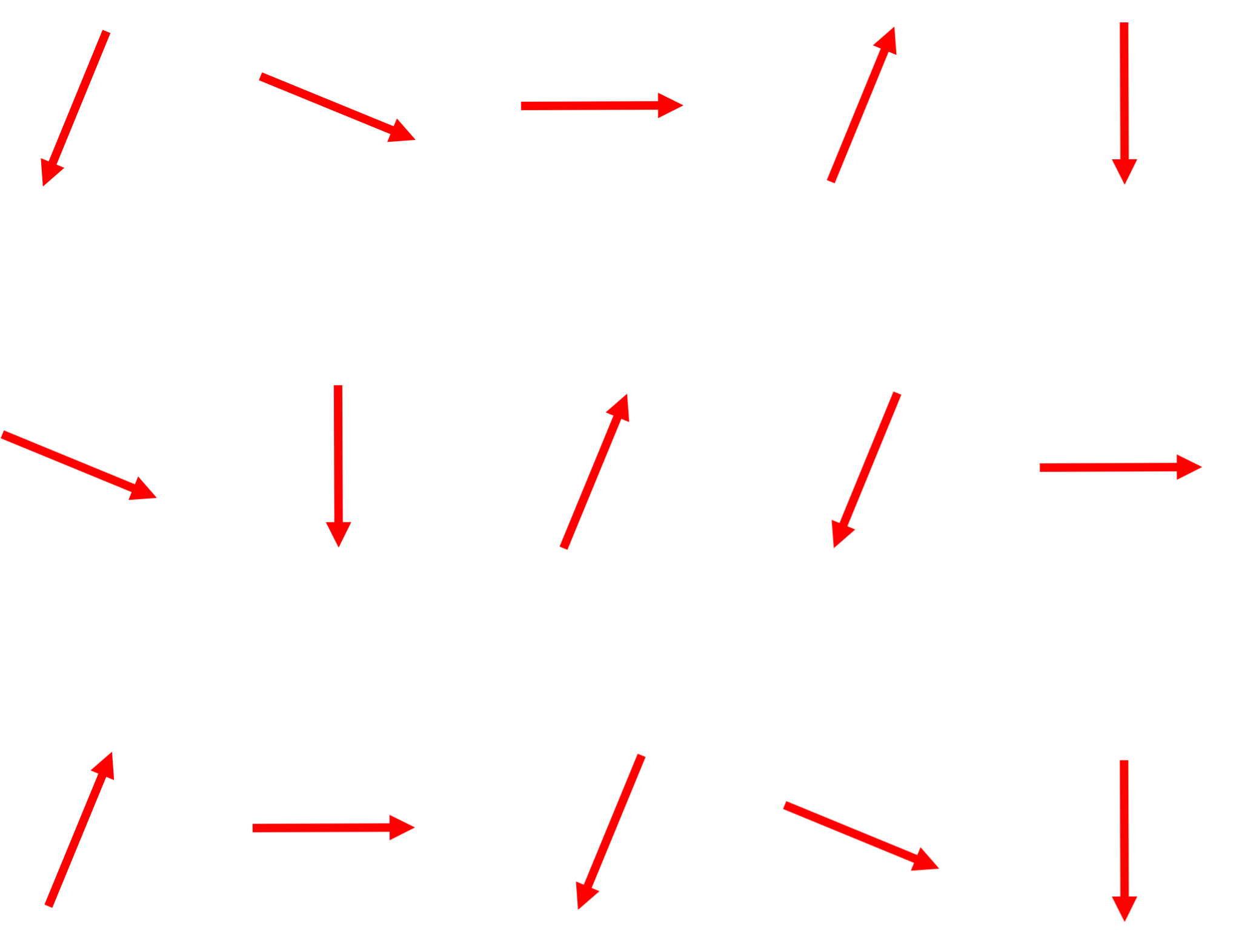

A pendulum is swinging back and forth along its circular arc. At the indicated position, the pendulum is swinging towards its middle position. Identify the vector arrow that best represents the velocity, tension force, and gravity force experienced by the pendulum at this location.
Question 22
A pendulum is swinging back and forth along its circular arc. At the indicated position, the pendulum is swinging towards its middle position. Identify the vector arrow that best represents the velocity, tension force, and gravity force experienced by the pendulum at this location.
Question 23

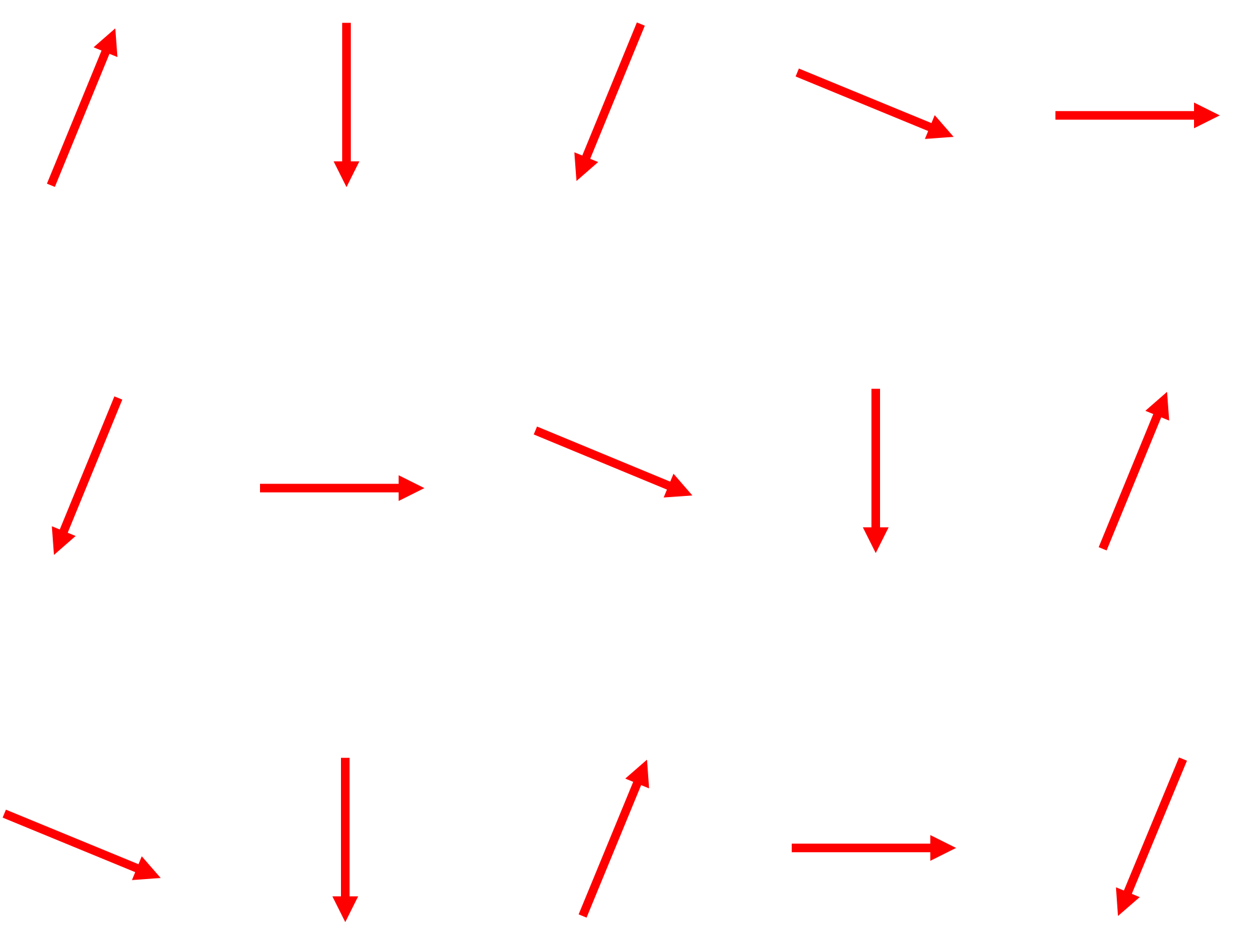

A pendulum is swinging back and forth along its circular arc. At the indicated position, the pendulum is swinging towards its middle position. Identify the vector arrow that best represents the velocity, tension force, and gravity force experienced by the pendulum at this location.

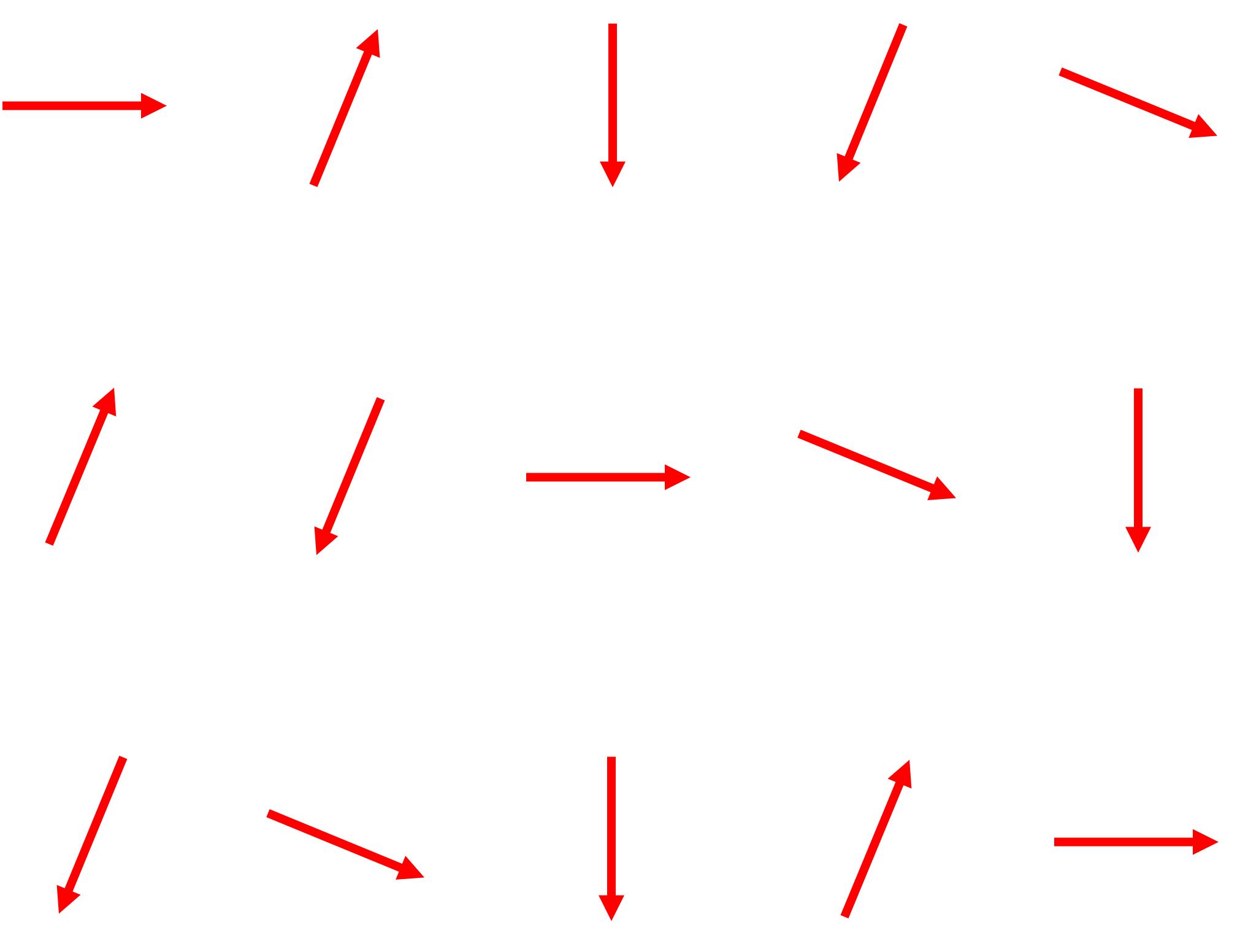

Question 24
A pendulum is swinging back and forth along its circular arc. At the indicated position, the pendulum is swinging towards its middle position. Identify the vector arrow that best represents the velocity, tension force, and gravity force experienced by the pendulum at this location.
Question Group 7

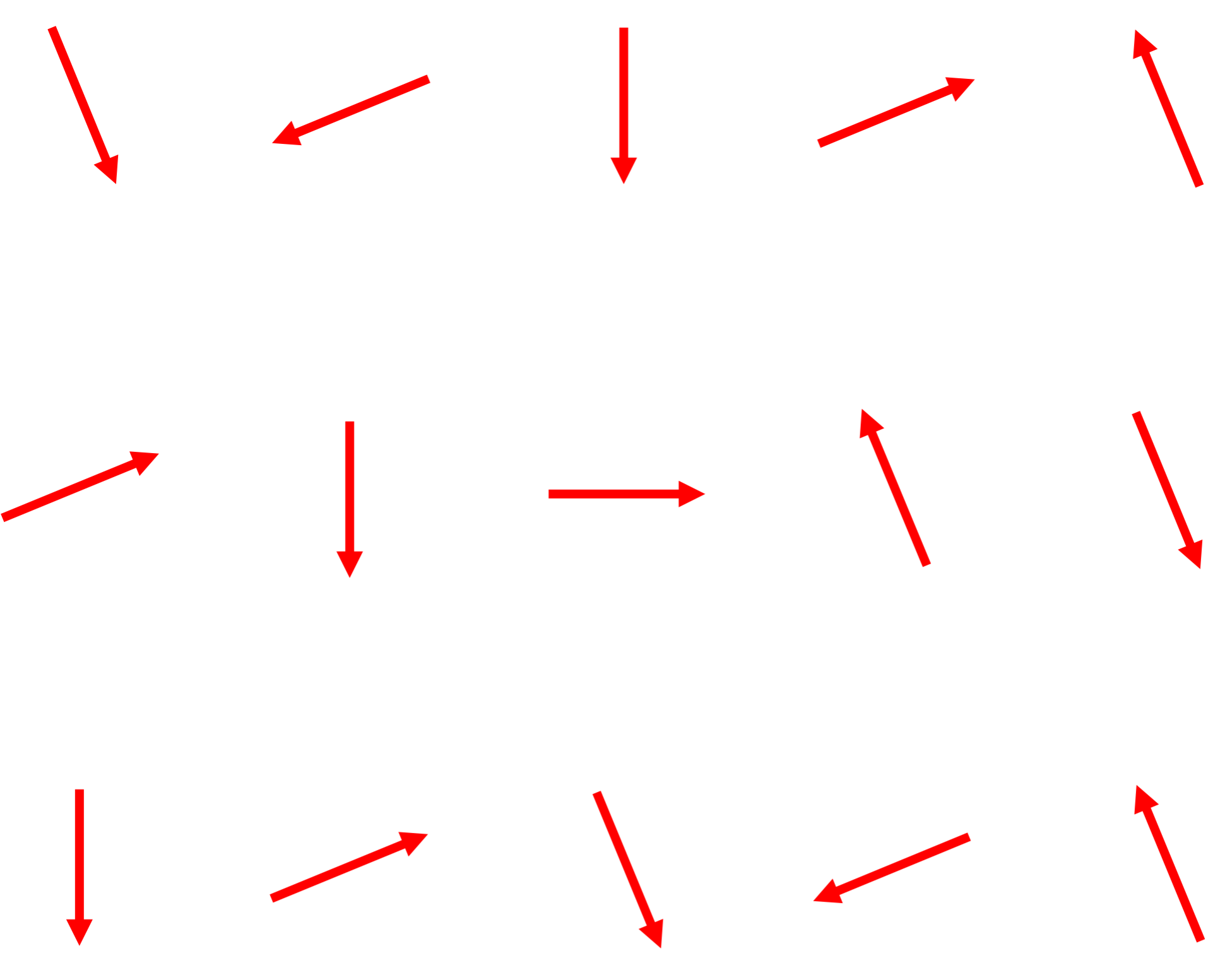

Question 25
A pendulum is swinging back and forth along its circular arc. At the indicated position, the pendulum is swinging away from its middle position. Identify the vector arrow that best represents the velocity, tension force, and gravity force experienced by the pendulum at this location.

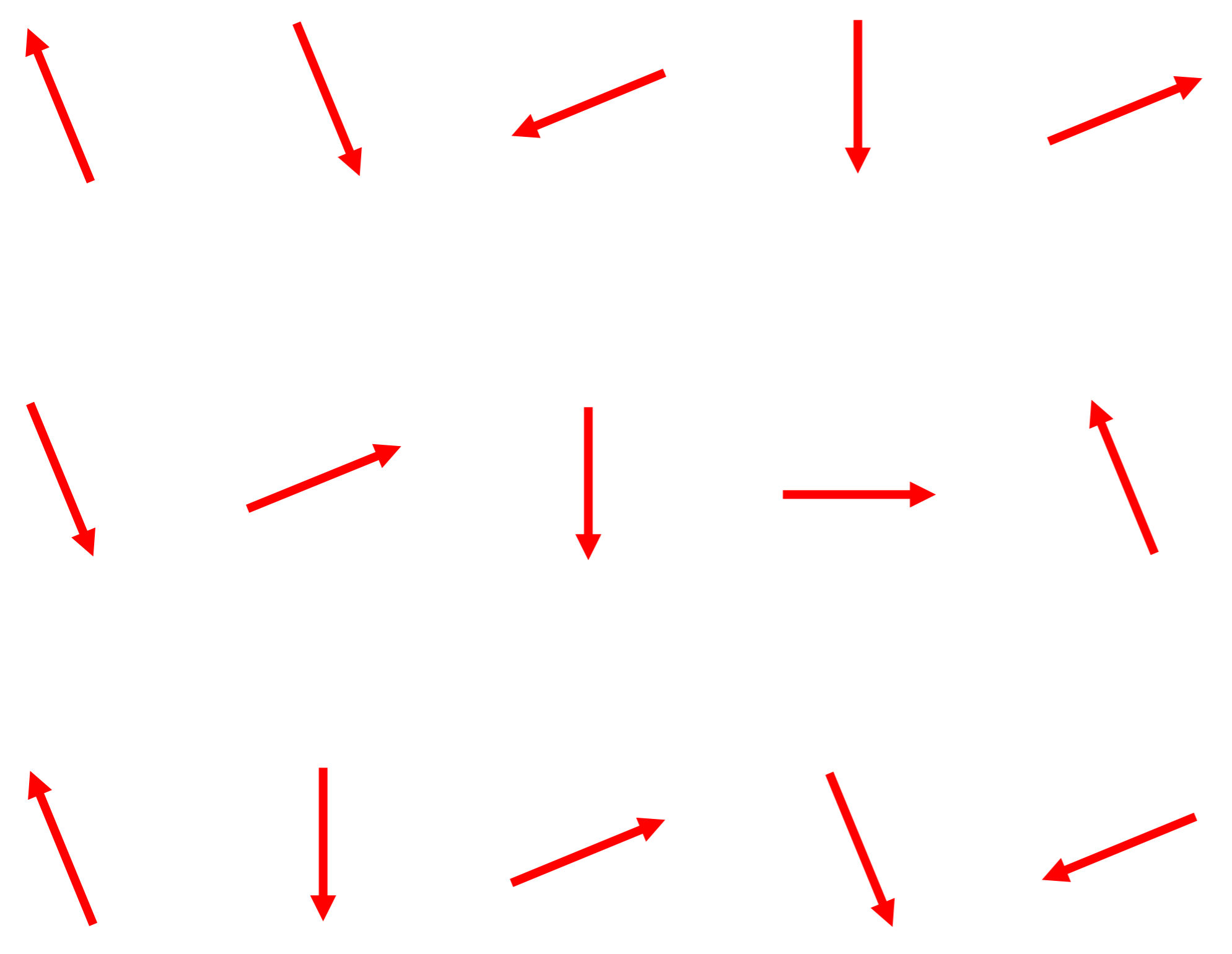

Question 26
A pendulum is swinging back and forth along its circular arc. At the indicated position, the pendulum is swinging away from its middle position. Identify the vector arrow that best represents the velocity, tension force, and gravity force experienced by the pendulum at this location.
Question 27
A pendulum is swinging back and forth along its circular arc. At the indicated position, the pendulum is swinging away from its middle position. Identify the vector arrow that best represents the velocity, tension force, and gravity force experienced by the pendulum at this location.

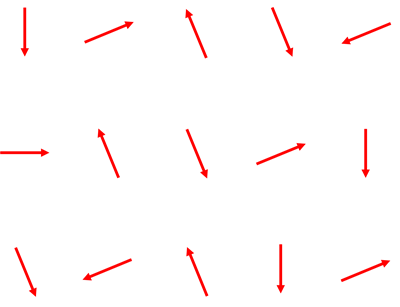

Question 28
A pendulum is swinging back and forth along its circular arc. At the indicated position, the pendulum is swinging away from its middle position. Identify the vector arrow that best represents the velocity, tension force, and gravity force experienced by the pendulum at this location.
Question Group 8
Question 29
A pendulum is swinging back and forth along its circular arc. At the indicated position, the pendulum is swinging towards the right. Identify the vector arrow that best represents the velocity, tension force, and gravity force experienced by the pendulum at this location.
Question 30
A pendulum is swinging back and forth along its circular arc. At the indicated position, the pendulum is swinging away towards the right. Identify the vector arrow that best represents the velocity, tension force, and gravity force experienced by the pendulum at this location.
Question 31
A pendulum is swinging back and forth along its circular arc. At the indicated position, the pendulum is swinging away towards the left. Identify the vector arrow that best represents the velocity, tension force, and gravity force experienced by the pendulum at this location.
Question 32
A pendulum is swinging back and forth along its circular arc. At the indicated position, the pendulum is swinging away towards the left. Identify the vector arrow that best represents the velocity, tension force, and gravity force experienced by the pendulum at this location.
Activity 3: Graphical Analysis
Question Group 9
Question 33

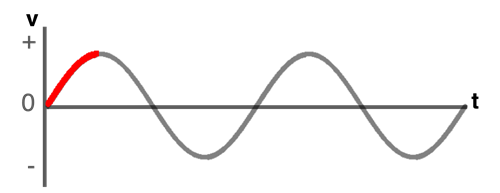

A pendulum is swinging back and forth along its circular arc. Five locations along its path are shown. A plot of its velocity as a function of time is shown. A positive velocity represents a pendulum bob moving to the right; a negative velocity represents a leftward motion.

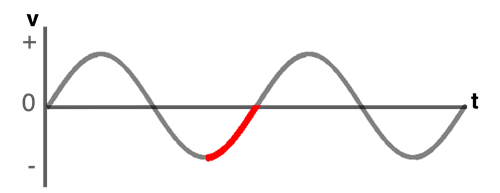

Consider the section of the plot that is shaded red. This section represents the pendulum bob moving from location …
A to B to C C to B to A C to D to E
E to D to C B to C to D D to C to B
Question 34
A pendulum is swinging back and forth along its circular arc. Five locations along its path are shown. A plot of its velocity as a function of time is shown. A positive velocity represents a pendulum bob moving to the right; a negative velocity represents a leftward motion.
Consider the section of the plot that is shaded red. This section represents the pendulum bob moving from location …
A to B to C B to C to D C to D to E
E to D to C D to C to B C to B to A

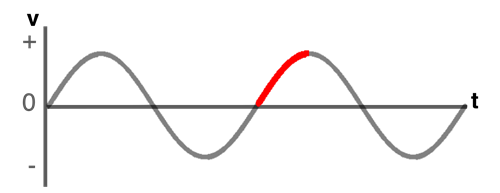

Question 35
A pendulum is swinging back and forth along its circular arc. Five locations along its path are shown. A plot of its velocity as a function of time is shown. A positive velocity represents a pendulum bob moving to the right; a negative velocity represents a leftward motion.
Consider the section of the plot that is shaded red. This section represents the pendulum bob moving from location …
A to B to C C to B to A C to D to E
E to D to C B to C to D D to C to B
Question 36
A pendulum is swinging back and forth along its circular arc. Five locations along its path are shown. A plot of its velocity as a function of time is shown. A positive velocity represents a pendulum bob moving to the right; a negative velocity represents a leftward motion.
Consider the section of the plot that is shaded red. This section represents the pendulum bob moving from location …
A to B to C B to C to D C to D to E
E to D to C D to C to B C to B to A
Question Group 10
Question 37
A pendulum is swinging back and forth along its circular arc. Five locations along its path are shown. A plot of its velocity as a function of time is shown. A positive velocity represents a pendulum bob moving to the right; a negative velocity represents a leftward motion.
Consider the section of the plot that is shaded red. This section represents the pendulum bob moving from location …
A to B to C C to B to A C to D to E
E to D to C B to C to D D to C to B
Question 38
A pendulum is swinging back and forth along its circular arc. Five locations along its path are shown. A plot of its velocity as a function of time is shown. A positive velocity represents a pendulum bob moving to the right; a negative velocity represents a leftward motion.
Consider the section of the plot that is shaded red. This section represents the pendulum bob moving from location …
A to B to C B to C to D C to D to E
E to D to C D to C to B C to B to A

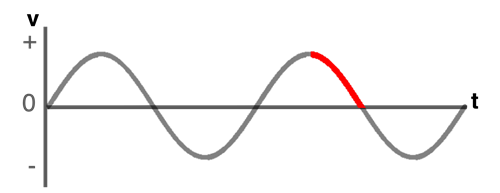

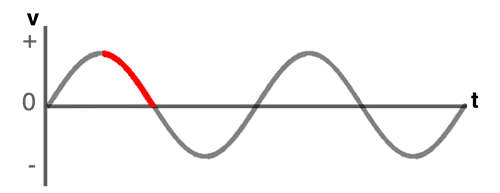

Question 39
A pendulum is swinging back and forth along its circular arc. Five locations along its path are shown. A plot of its velocity as a function of time is shown. A positive velocity represents a pendulum bob moving to the right; a negative velocity represents a leftward motion.
Consider the section of the plot that is shaded red. This section represents the pendulum bob moving from location …
A to B to C C to B to A C to D to E
E to D to C B to C to D D to C to B
Question 40
A pendulum is swinging back and forth along its circular arc. Five locations along its path are shown. A plot of its velocity as a function of time is shown. A positive velocity represents a pendulum bob moving to the right; a negative velocity represents a leftward motion.
Consider the section of the plot that is shaded red. This section represents the pendulum bob moving from location …
A to B to C B to C to D C to D to E
E to D to C D to C to B C to B to A
Question Group 11

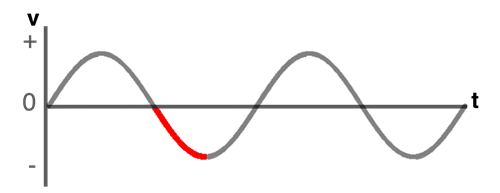

Question 41
A pendulum is swinging back and forth along its circular arc. Five locations along its path are shown. A plot of its velocity as a function of time is shown. A positive velocity represents a pendulum bob moving to the right; a negative velocity represents a leftward motion.
Consider the section of the plot that is shaded red. This section represents the pendulum bob moving from location …
A to B to C C to B to A C to D to E
E to D to C B to C to D D to C to B
Question 42
A pendulum is swinging back and forth along its circular arc. Five locations along its path are shown. A plot of its velocity as a function of time is shown. A positive velocity represents a pendulum bob moving to the right; a negative velocity represents a leftward motion.
Consider the section of the plot that is shaded red. This section represents the pendulum bob moving from location …
A to B to C B to C to D C to D to E
E to D to C D to C to B C to B to A
Question 43

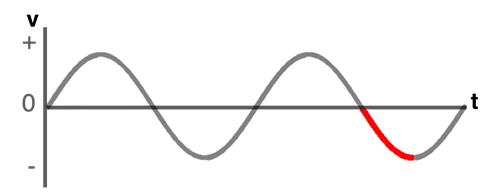

A pendulum is swinging back and forth along its circular arc. Five locations along its path are shown. A plot of its velocity as a function of time is shown. A positive velocity represents a pendulum bob moving to the right; a negative velocity represents a leftward motion.
Consider the section of the plot that is shaded red. This section represents the pendulum bob moving from location …
A to B to C C to B to A C to D to E
E to D to C B to C to D D to C to B
Question 44
A pendulum is swinging back and forth along its circular arc. Five locations along its path are shown. A plot of its velocity as a function of time is shown. A positive velocity represents a pendulum bob moving to the right; a negative velocity represents a leftward motion.
Consider the section of the plot that is shaded red. This section represents the pendulum bob moving from location …
A to B to C B to C to D C to D to E
E to D to C D to C to B C to B to A
Question Group 12
Question 45
A pendulum is swinging back and forth along its circular arc. Five locations along its path are shown. A plot of its velocity as a function of time is shown. A positive velocity represents a pendulum bob moving to the right; a negative velocity represents a leftward motion.
Consider the section of the plot that is shaded red. This section represents the pendulum bob moving from location …
A to B to C C to B to A C to D to E
E to D to C B to C to D D to C to B
Question 46
A pendulum is swinging back and forth along its circular arc. Five locations along its path are shown. A plot of its velocity as a function of time is shown. A positive velocity represents a pendulum bob moving to the right; a negative velocity represents a leftward motion.
Consider the section of the plot that is shaded red. This section represents the pendulum bob moving from location …
A to B to C B to C to D C to D to E
E to D to C D to C to B C to B to A
Question 47
A pendulum is swinging back and forth along its circular arc. Five locations along its path are shown. A plot of its velocity as a function of time is shown. A positive velocity represents a pendulum bob moving to the right; a negative velocity represents a leftward motion.
Consider the section of the plot that is shaded red. This section represents the pendulum bob moving from location …
A to B to C C to B to A C to D to E
E to D to C B to C to D D to C to B
Question 48

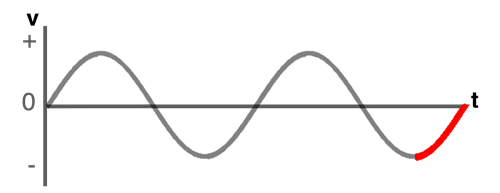

A pendulum is swinging back and forth along its circular arc. Five locations along its path are shown. A plot of its velocity as a function of time is shown. A positive velocity represents a pendulum bob moving to the right; a negative velocity represents a leftward motion.
Consider the section of the plot that is shaded red. This section represents the pendulum bob moving from location …
A to B to C B to C to D C to D to E
E to D to C D to C to B C to B to A
Question Group 13
Question 49

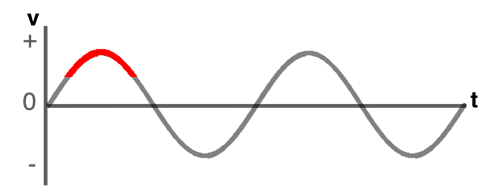

A pendulum is swinging back and forth along its circular arc. Five locations along its path are shown. A plot of its velocity as a function of time is shown. A positive velocity represents a pendulum bob moving to the right; a negative velocity represents a leftward motion.
Consider the section of the plot that is shaded red. This section represents the pendulum bob moving from location …
A to B to C C to B to A C to D to E
E to D to C B to C to D D to C to B
Question 50
A pendulum is swinging back and forth along its circular arc. Five locations along its path are shown. A plot of its velocity as a function of time is shown. A positive velocity represents a pendulum bob moving to the right; a negative velocity represents a leftward motion.
Consider the section of the plot that is shaded red. This section represents the pendulum bob moving from location …
A to B to C B to C to D C to D to E
E to D to C D to C to B C to B to A
Question 51

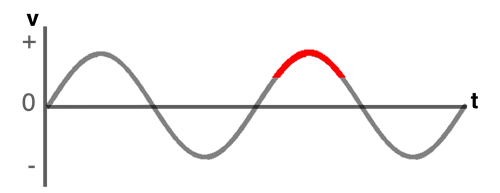

A pendulum is swinging back and forth along its circular arc. Five locations along its path are shown. A plot of its velocity as a function of time is shown. A positive velocity represents a pendulum bob moving to the right; a negative velocity represents a leftward motion.
Consider the section of the plot that is shaded red. This section represents the pendulum bob moving from location …
A to B to C C to B to A C to D to E
E to D to C B to C to D D to C to B
Question 52
A pendulum is swinging back and forth along its circular arc. Five locations along its path are shown. A plot of its velocity as a function of time is shown. A positive velocity represents a pendulum bob moving to the right; a negative velocity represents a leftward motion.
Consider the section of the plot that is shaded red. This section represents the pendulum bob moving from location …
A to B to C B to C to D C to D to E
E to D to C D to C to B C to B to A
Question Group 14
Question 53

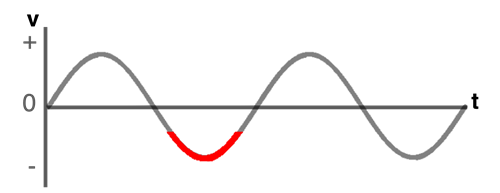

A pendulum is swinging back and forth along its circular arc. Five locations along its path are shown. A plot of its velocity as a function of time is shown. A positive velocity represents a pendulum bob moving to the right; a negative velocity represents a leftward motion.
Consider the section of the plot that is shaded red. This section represents the pendulum bob moving from location …
A to B to C C to B to A C to D to E
E to D to C B to C to D D to C to B
Question 54
A pendulum is swinging back and forth along its circular arc. Five locations along its path are shown. A plot of its velocity as a function of time is shown. A positive velocity represents a pendulum bob moving to the right; a negative velocity represents a leftward motion.
Consider the section of the plot that is shaded red. This section represents the pendulum bob moving from location …
A to B to C B to C to D C to D to E
E to D to C D to C to B C to B to A

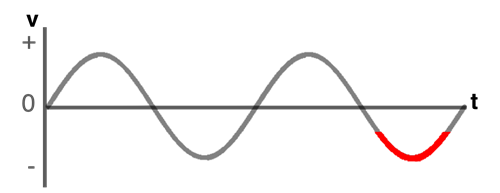

Question 55
A pendulum is swinging back and forth along its circular arc. Five locations along its path are shown. A plot of its velocity as a function of time is shown. A positive velocity represents a pendulum bob moving to the right; a negative velocity represents a leftward motion.
Consider the section of the plot that is shaded red. This section represents the pendulum bob moving from location …
A to B to C C to B to A C to D to E
E to D to C B to C to D D to C to B
Question 56
A pendulum is swinging back and forth along its circular arc. Five locations along its path are shown. A plot of its velocity as a function of time is shown. A positive velocity represents a pendulum bob moving to the right; a negative velocity represents a leftward motion.
Consider the section of the plot that is shaded red. This section represents the pendulum bob moving from location …
A to B to C B to C to D C to D to E
E to D to C D to C to B C to B to A
