Balanced vs. Unbalanced Torques - Questions

The Balanced vs. Unbalanced Torques Concept Builder is comprised of 48 questions. The questions are divided into 12 different question groups. Questions in the same group are rather similar to one another. The Concept Builder is coded to select at random a question from each group until a student is successful with that group of questions.

The questions and question groups are organized into three different difficulty levels. The difficulty levels are differentiated as follows:

• Apprentice Difficulty Level  Question Groups 1-4: Students are given two torques and must analyze the torques experienced by an object in order to determine if the object is experiencing an angular acceleration.
• Master Difficulty Level  Question Groups 5-8: Students are given two forces and their point of application and must determine if the torques balance and whether there is an angular acceleration.
• Wizard Difficulty Level  Question Groups 9-12: Students are given three or four forces and their point of application and must determine if the torques balance and whether there is an angular acceleration.

The questions from each group are shown below. Teachers are encouraged to view the questions in order to judge which activity is most appropriate for their classes. We recommend doing all three activities.

The Physics Classroom grants teachers and other users the right to print these questions for private use. Users are also granted the right to copy the text and modify it for their own use. However, this document should not be uploaded to other servers for distribution to and/or display by others. The Physics Classroom website should remain the only website or server from which the document is distributed or displayed. We also provide a PDF that teachers can use under the same conditions. We have included a link to the PDF near the bottom of this page.




Activity 1: Apprentice Difficulty Level
Question Group 1
Questions 1

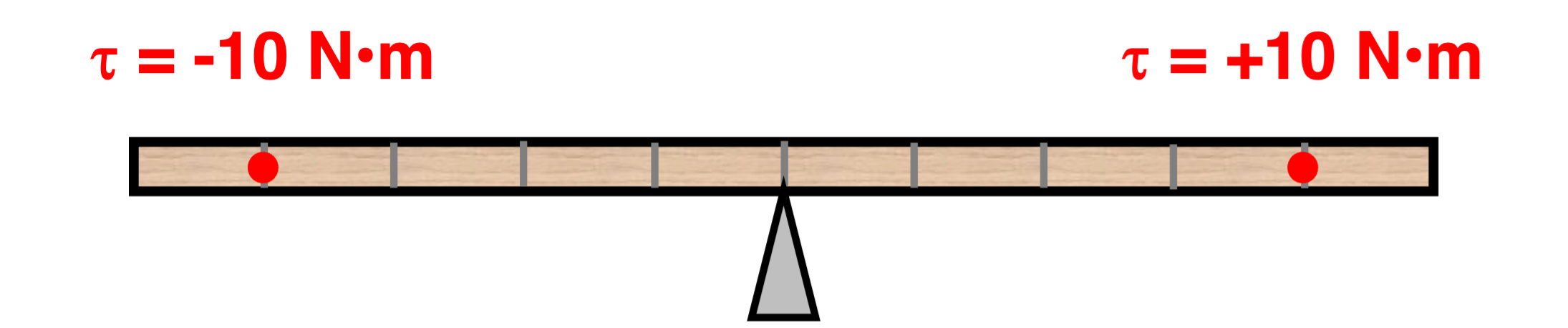

The two dots on the diagram represent the point of application of two forces on a beam. The resulting torques (τ) are shown.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?


Question 2

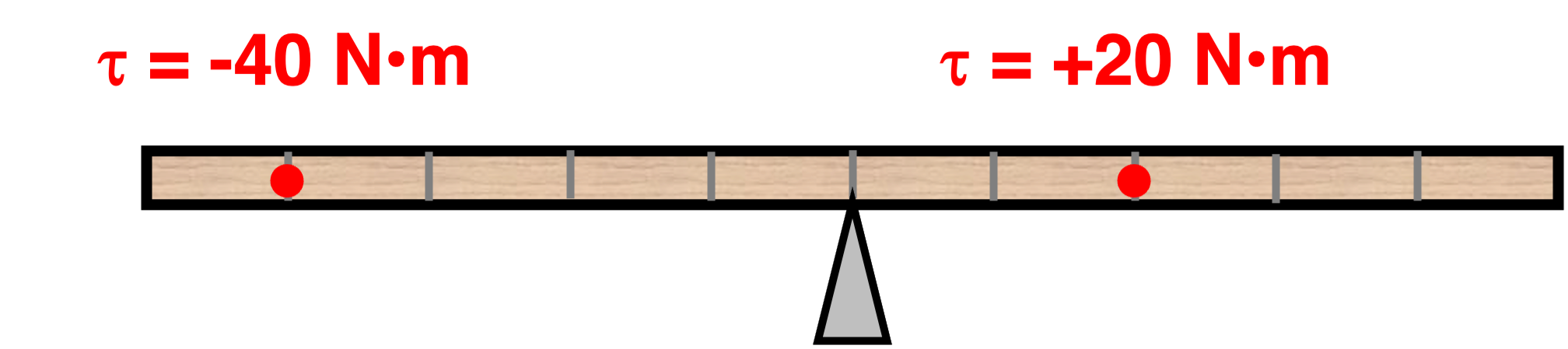

The two dots on the diagram represent the point of application of two forces on a beam. The resulting torques (τ) are shown.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?


Question 3

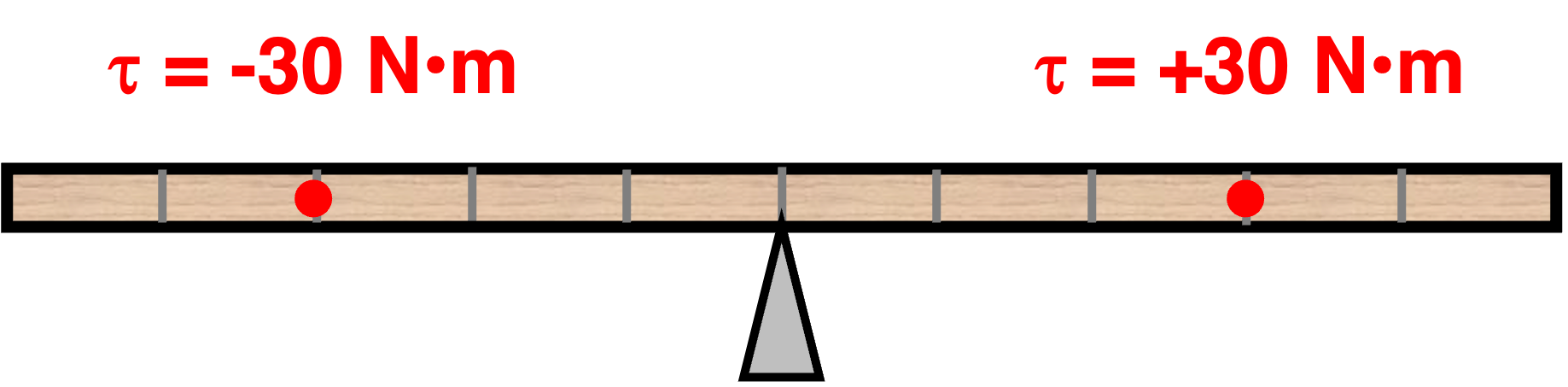

The two dots on the diagram represent the point of application of two forces on a beam. The resulting torques (τ) are shown.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?

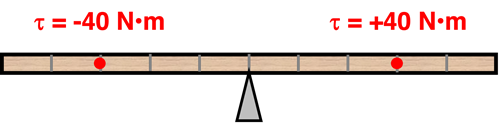

Question 4
The two dots on the diagram represent the point of application of two forces on a beam. The resulting torques (τ) are shown.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?




Question Group 2

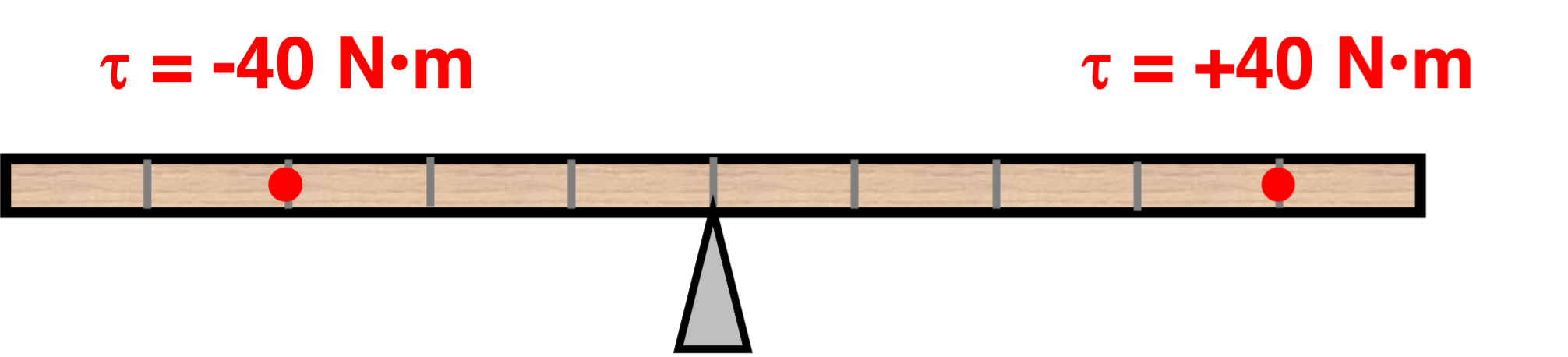

Question 5

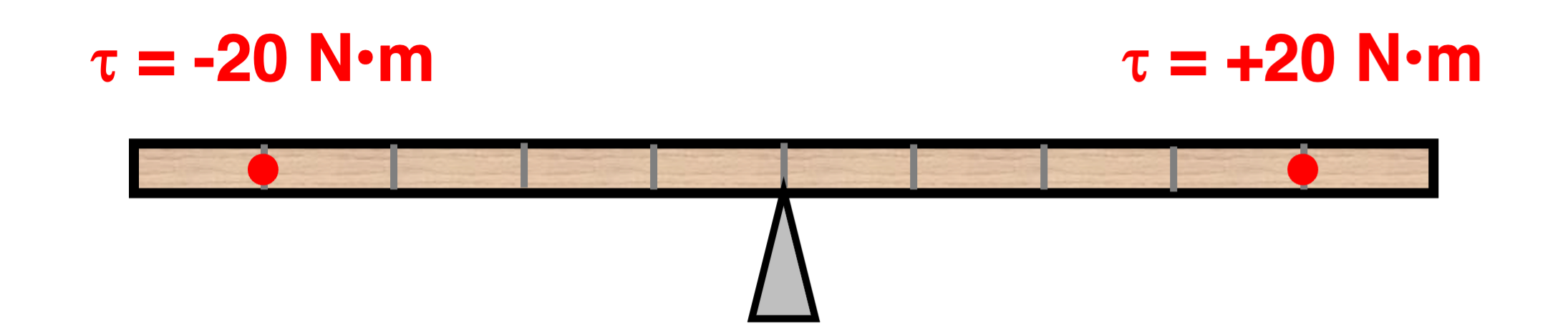

The two dots on the diagram represent the point of application of two forces on a beam. The resulting torques (τ) are shown.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?


Question 6

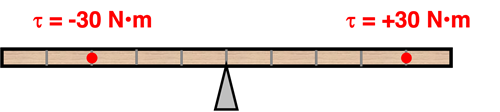

The two dots on the diagram represent the point of application of two forces on a beam. The resulting torques (τ) are shown.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?


Question 7
The two dots on the diagram represent the point of application of two forces on a beam. The resulting torques (τ) are shown.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?


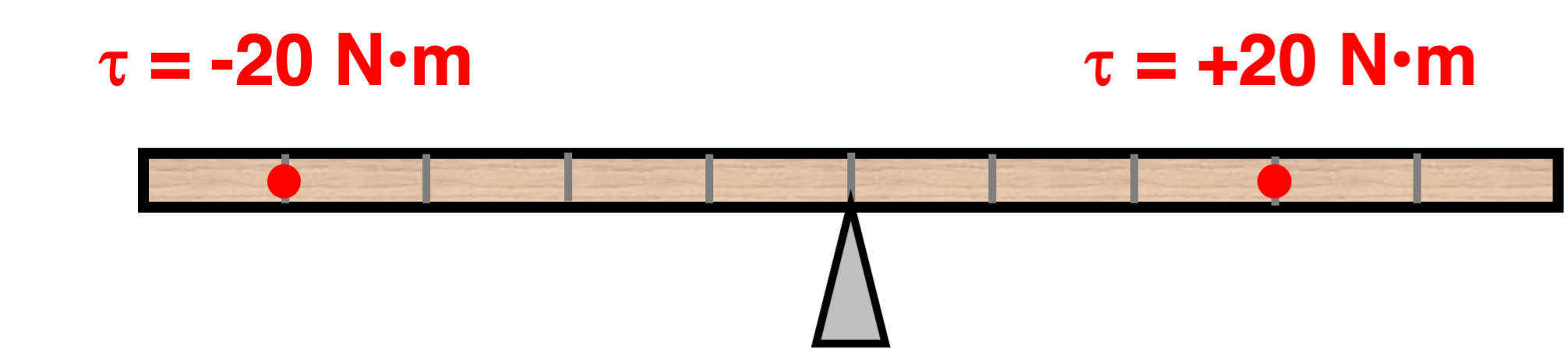

Question 8
The two dots on the diagram represent the point of application of two forces on a beam. The resulting torques (τ) are shown.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?




Question Group 3
Question 9
The two dots on the diagram represent the point of application of two forces on a beam. The resulting torques (τ) are shown.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?


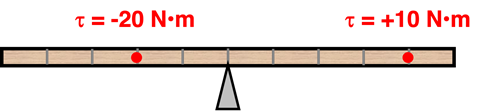

Question 10
The two dots on the diagram represent the point of application of two forces on a beam. The resulting torques (τ) are shown.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?


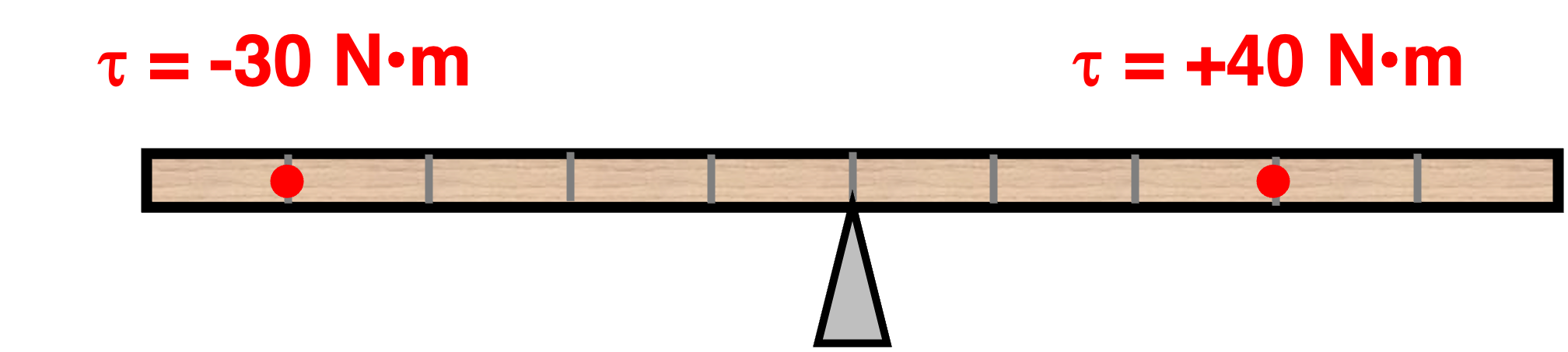

Question 11
The two dots on the diagram represent the point of application of two forces on a beam. The resulting torques (τ) are shown.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?


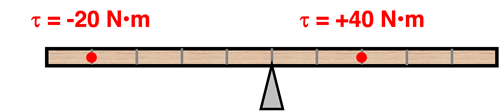

Question 12
The two dots on the diagram represent the point of application of two forces on a beam. The resulting torques (τ) are shown.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?




Question Group 4
Question 13

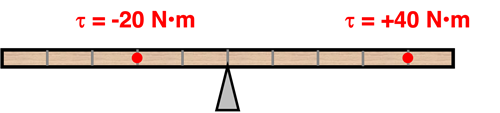

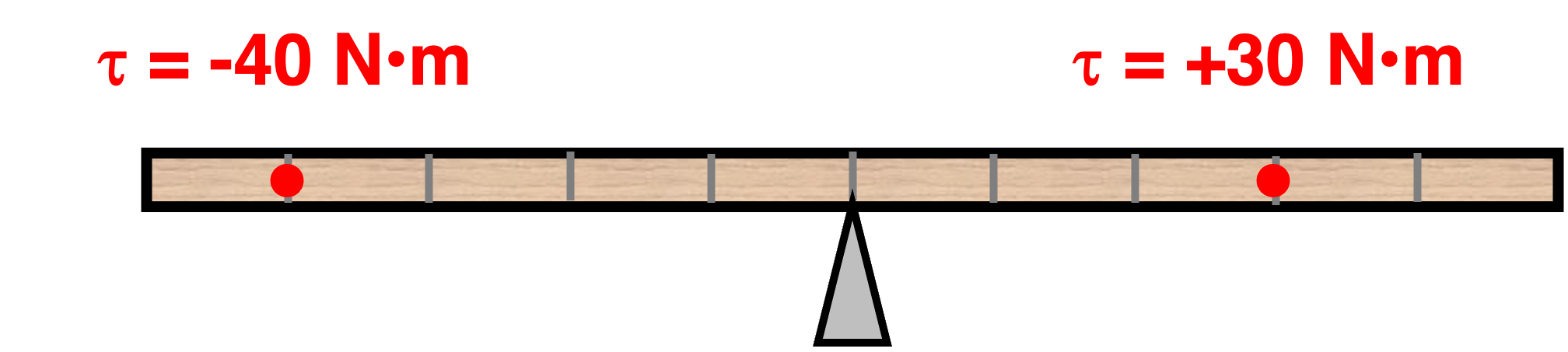

The two dots on the diagram represent the point of application of two forces on a beam. The resulting torques (τ) are shown.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?


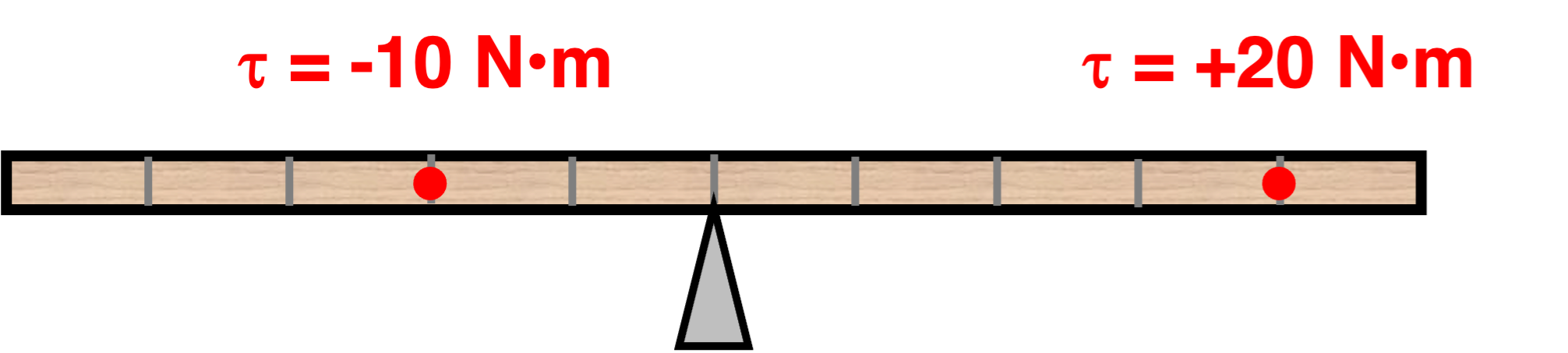

Question 14
The two dots on the diagram represent the point of application of two forces on a beam. The resulting torques (τ) are shown.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?


Question 15
The two dots on the diagram represent the point of application of two forces on a beam. The resulting torques (τ) are shown.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?


Question 16
The two dots on the diagram represent the point of application of two forces on a beam. The resulting torques (τ) are shown.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?




Activity 2: Master Difficulty Level
Question Group 5

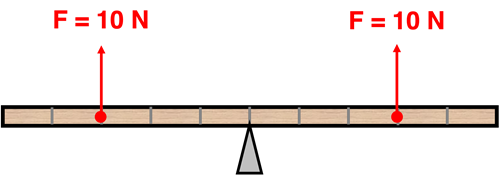

Question 17

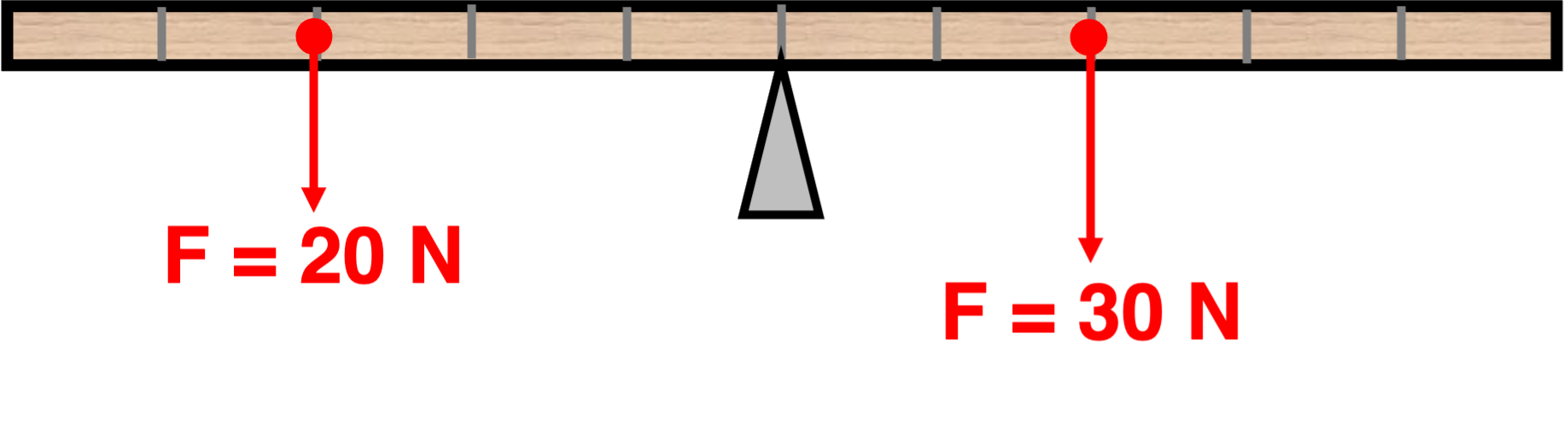

The diagram shows two forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?


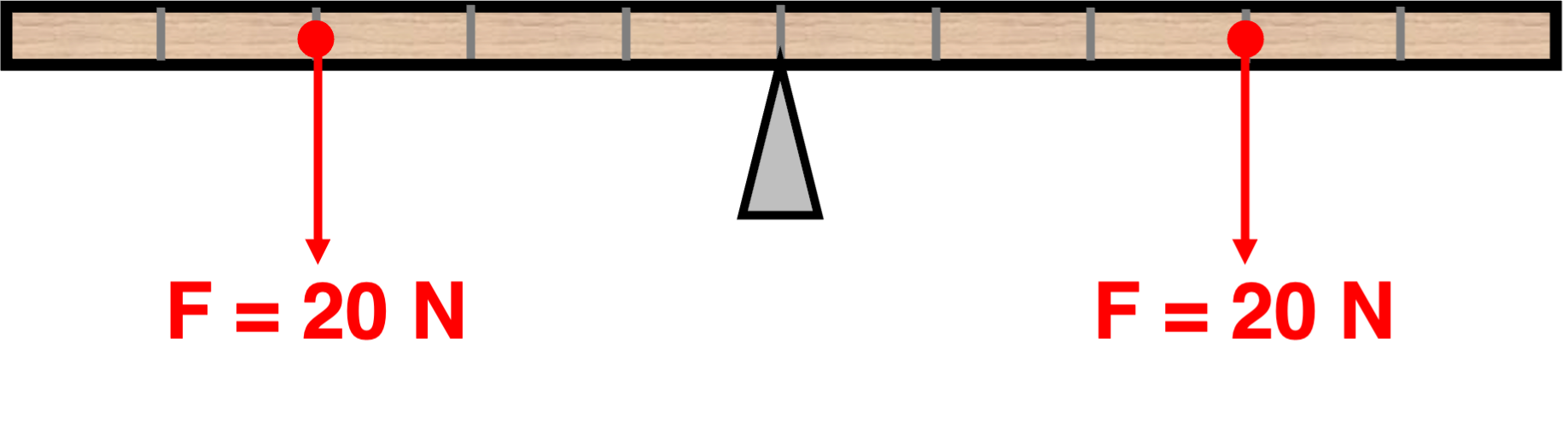

Question 18
The diagram shows two forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?

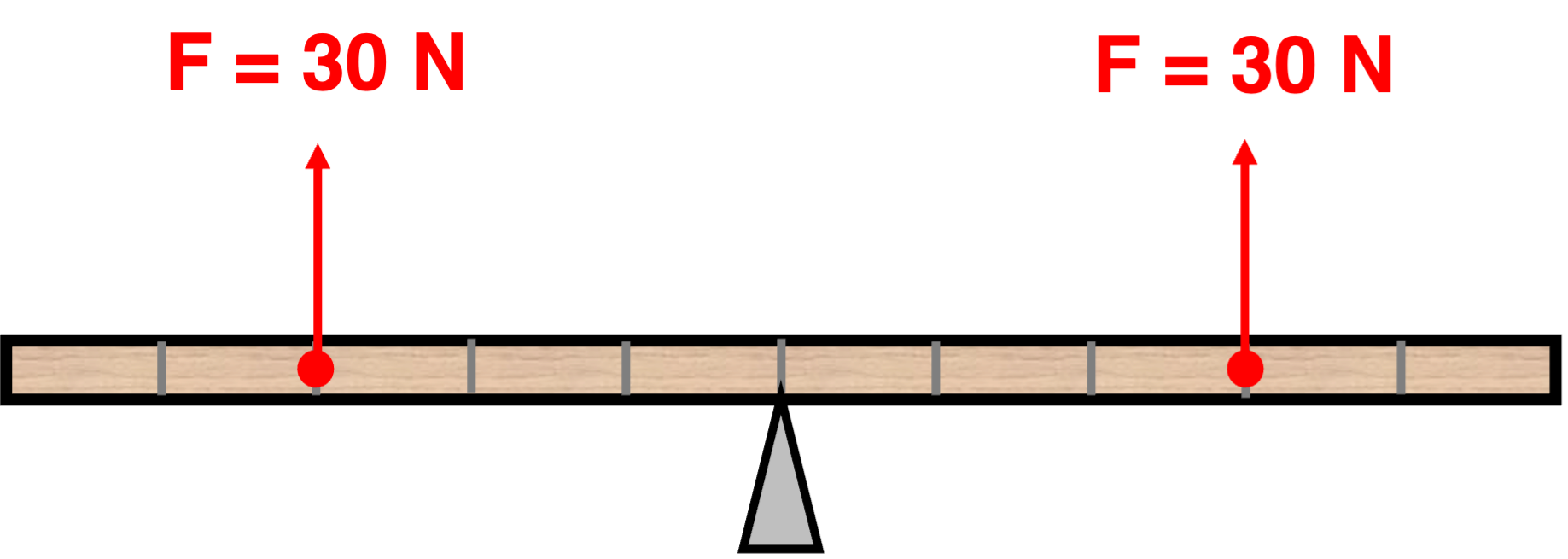

Question 19
The diagram shows two forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?


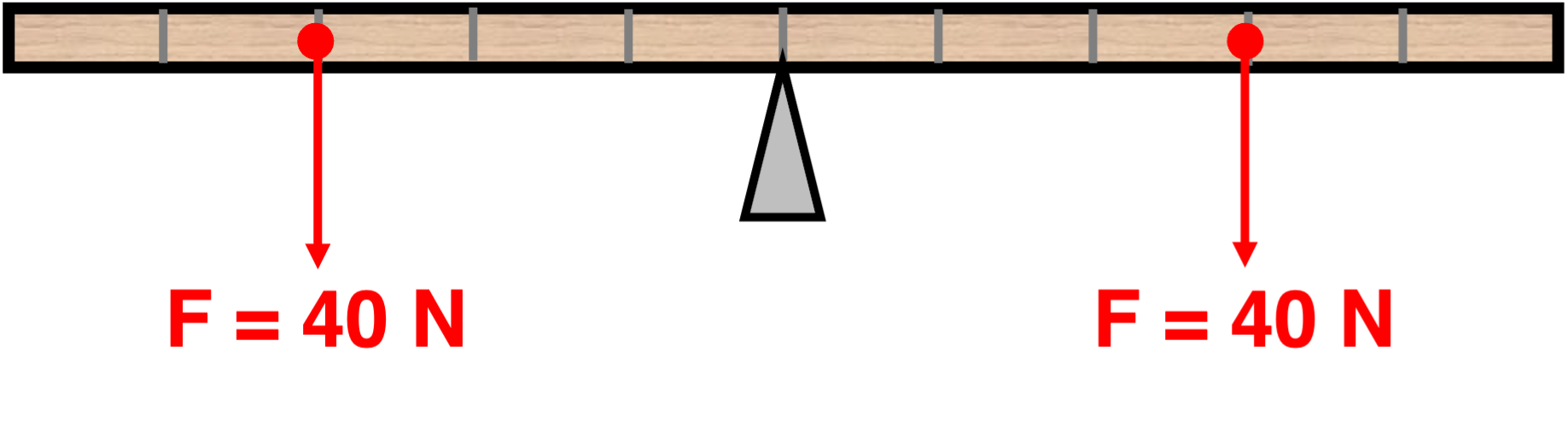

Question 20
The diagram shows two forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?




Question Group 6

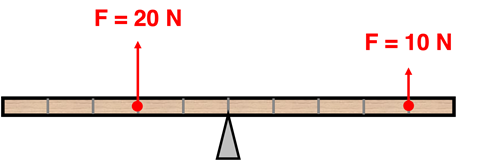

Question 21
The diagram shows two forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?


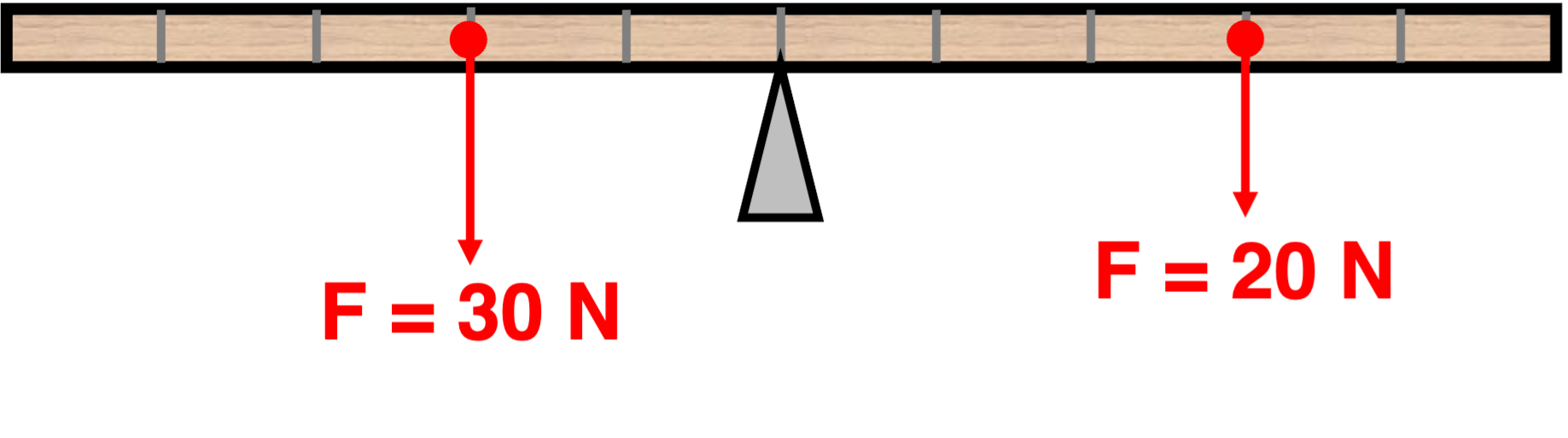

Question 22
The diagram shows two forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?

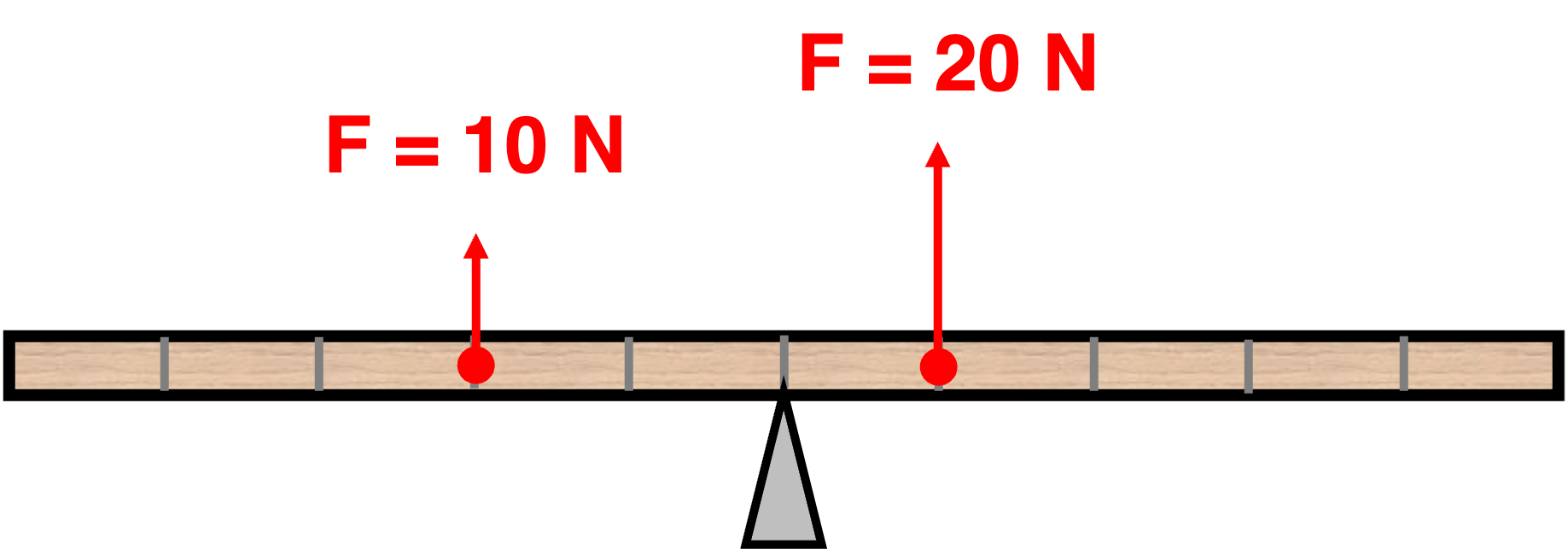

Question 23
The diagram shows two forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?


Question 24
The diagram shows two forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?




Question Group 7

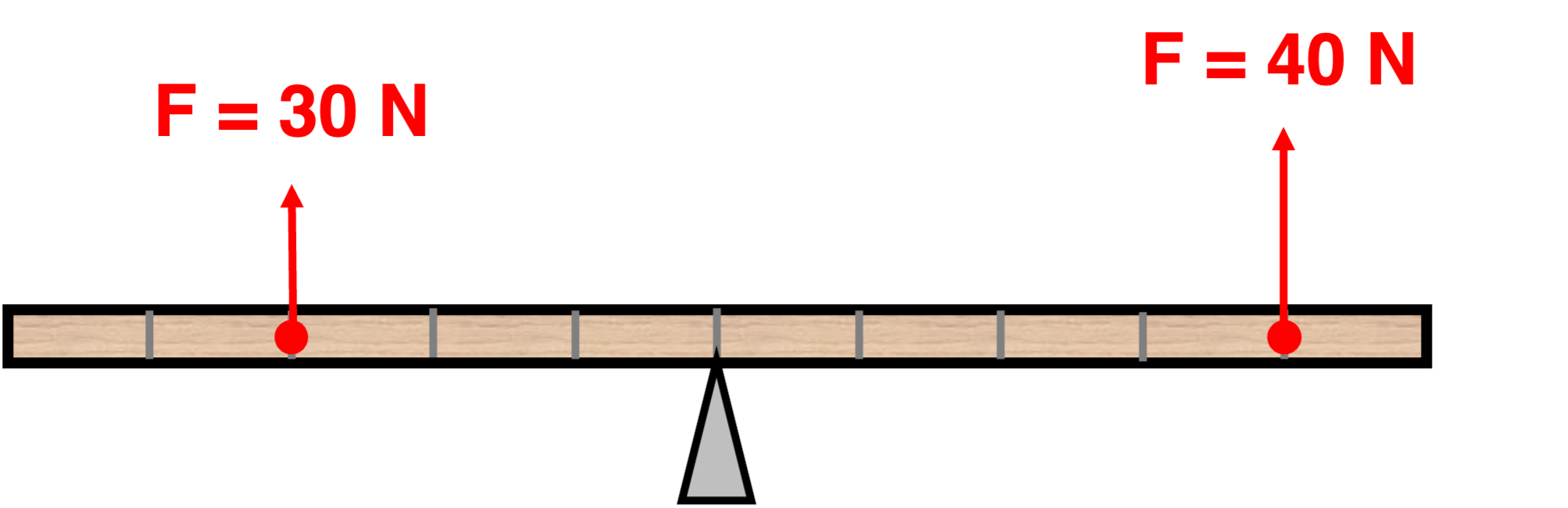

Question 25
The diagram shows two forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?


Question 26

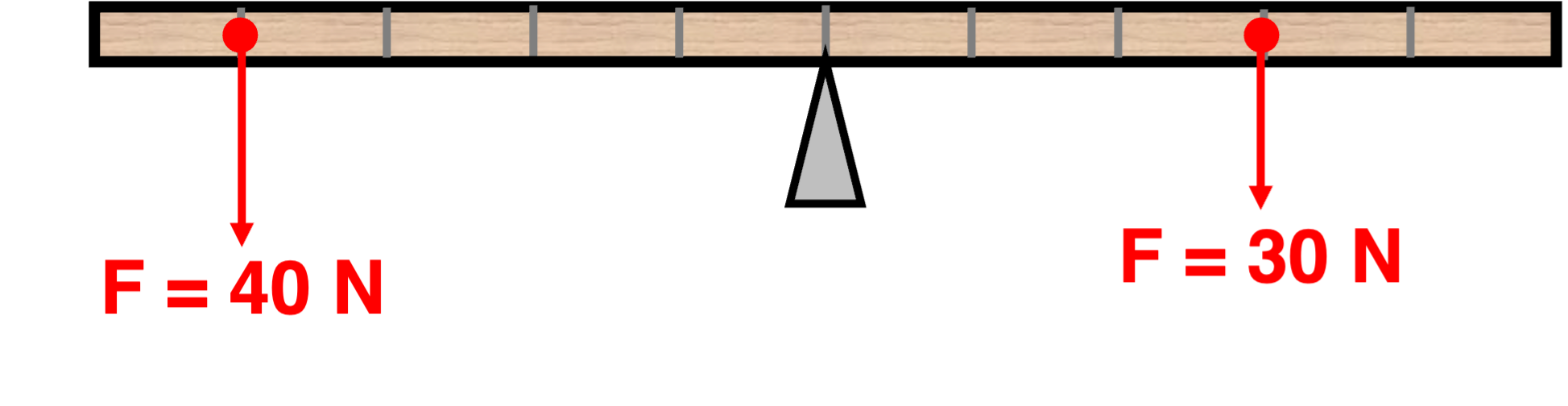

The diagram shows two forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?


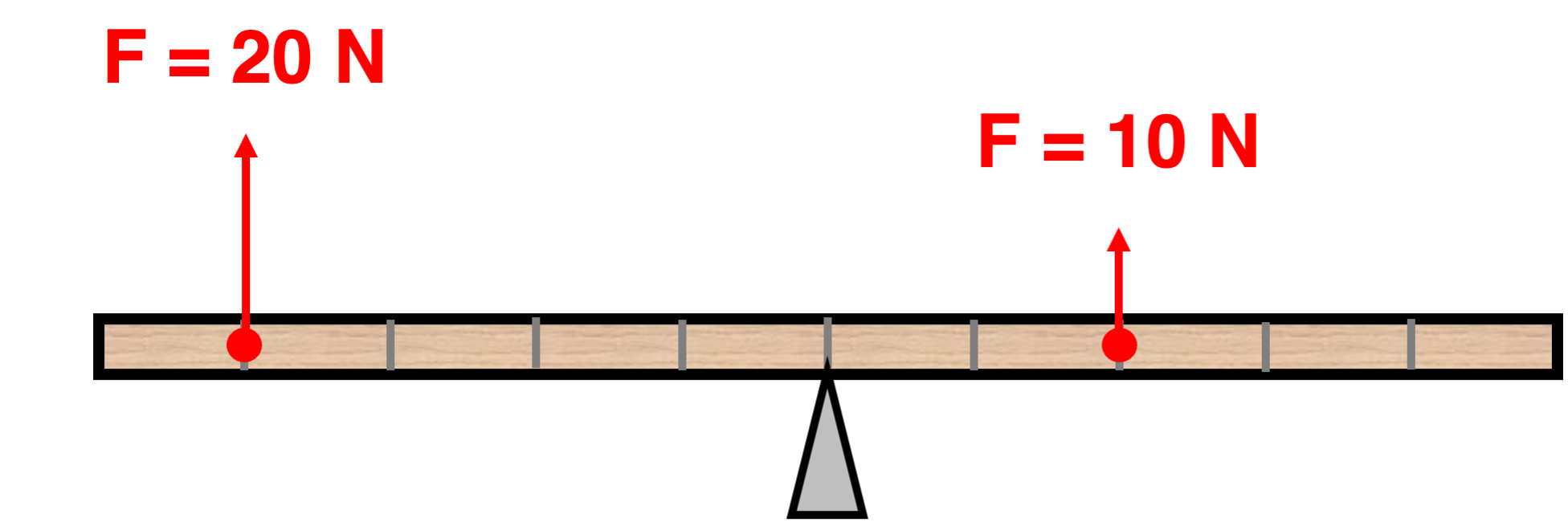

Question 27
The diagram shows two forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?


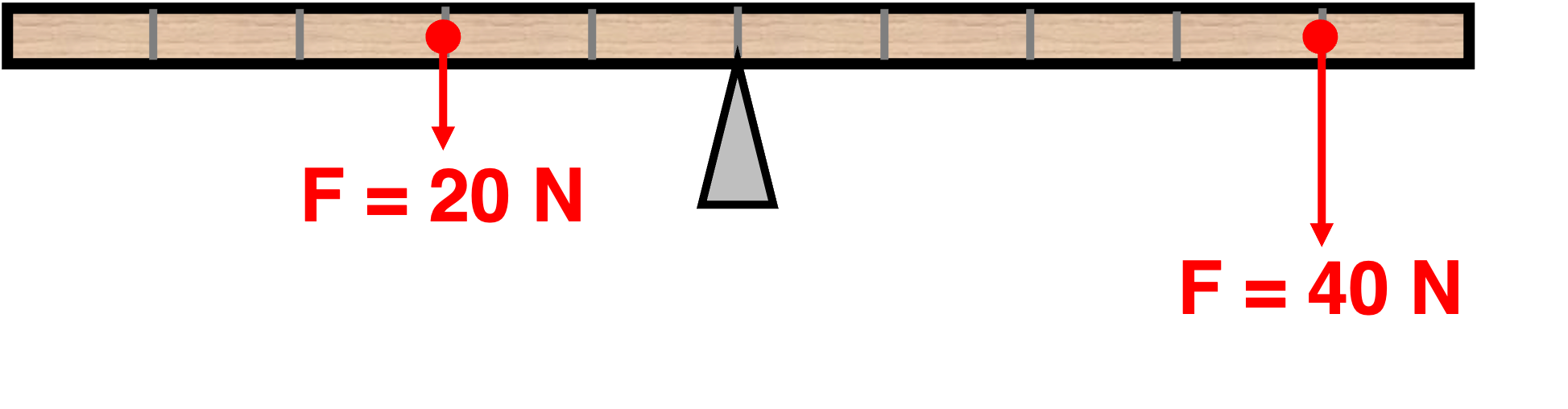

Question 28
The diagram shows two forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?




Question Group 8
Question 29

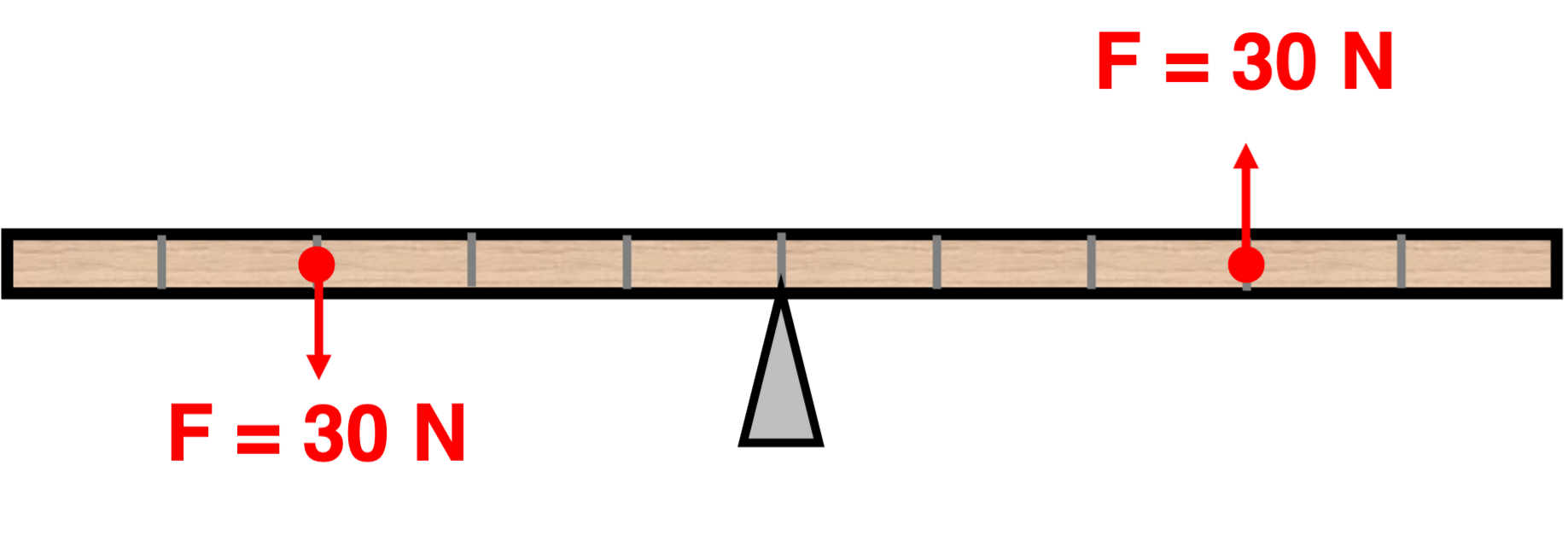

The diagram shows two forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?


Question 30

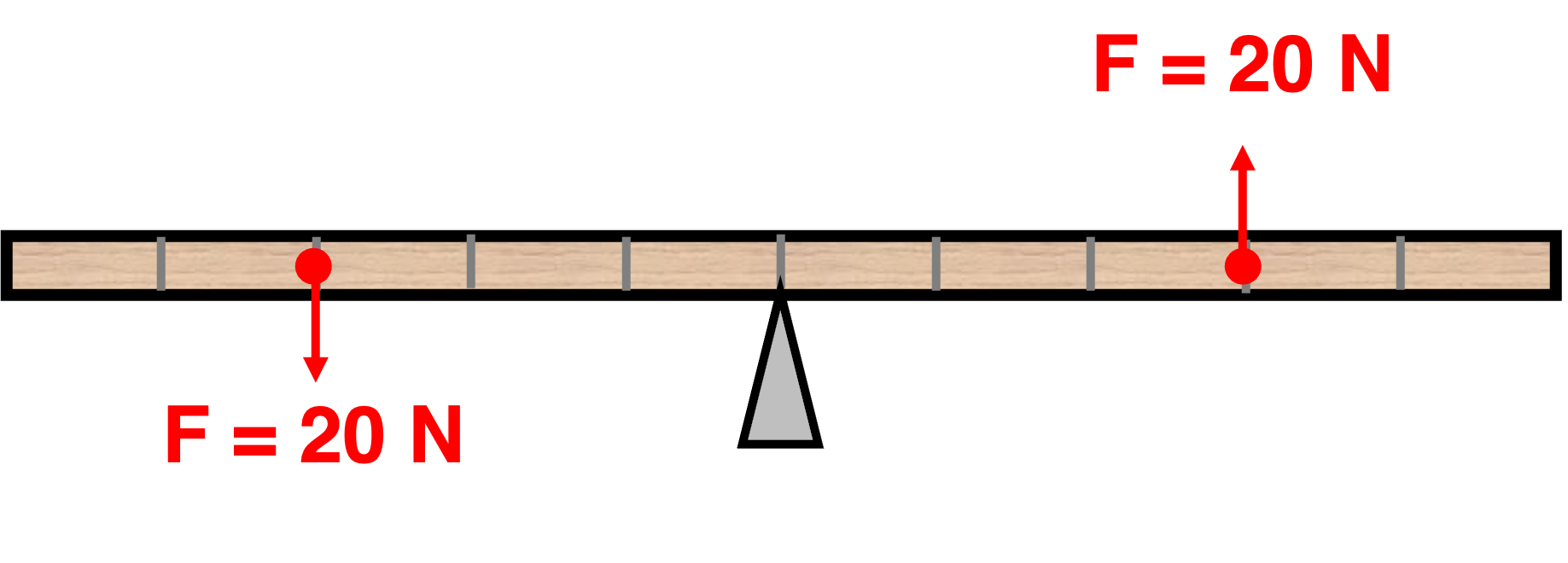

The diagram shows two forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?

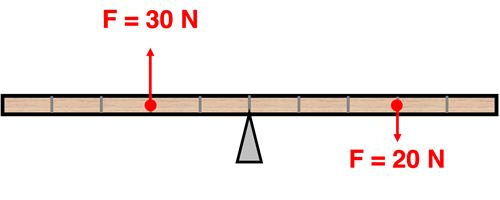

Question 31
The diagram shows two forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?


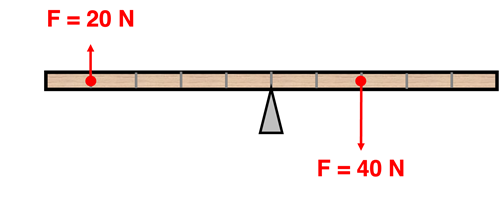

Question 32
The diagram shows two forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?




Activity 3: Wizard Difficulty Level
Question Group 9
Question 33

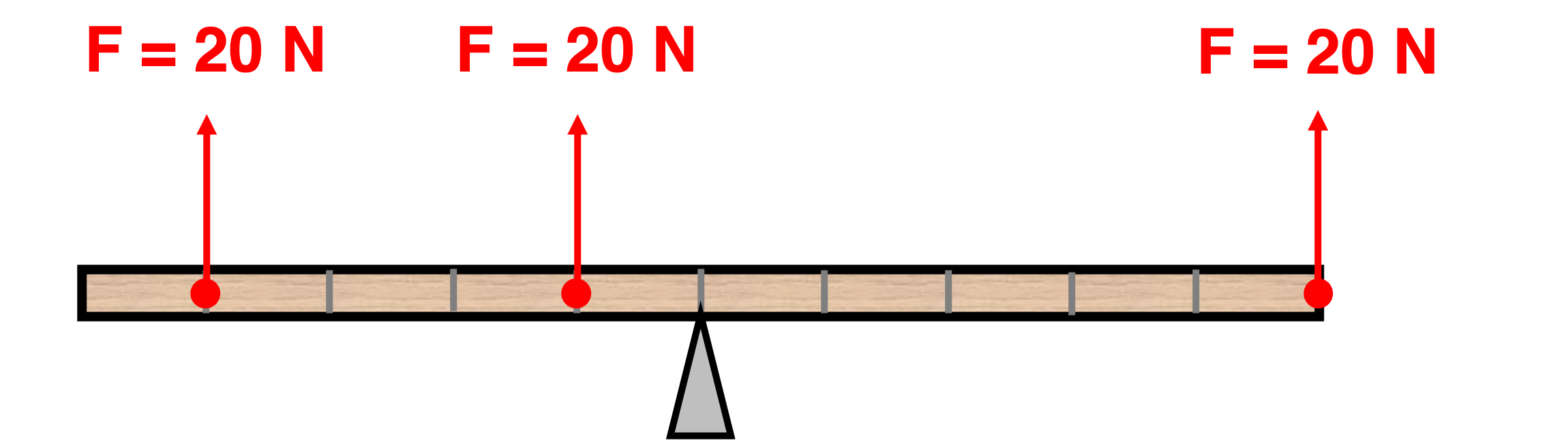

The diagram shows three forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?


Question 34

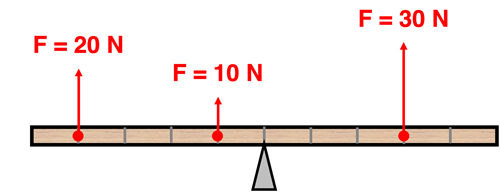

The diagram shows three forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?


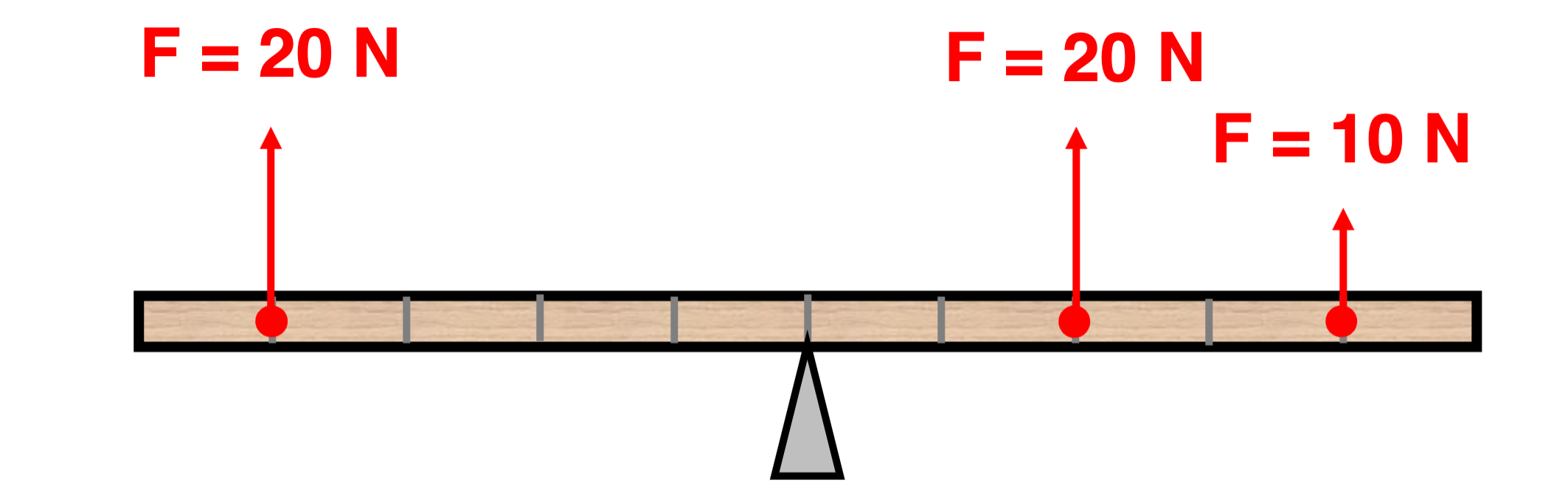

Question 35
The diagram shows three forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?


Question 36
The diagram shows three forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?




Question Group 10
Question 37

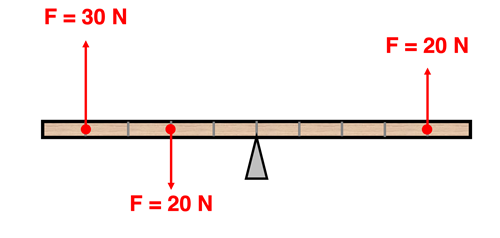

The diagram shows three forces and their point of application upon a beam. Each force will result in a torque.
Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?



Question 38
The diagram shows three forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?




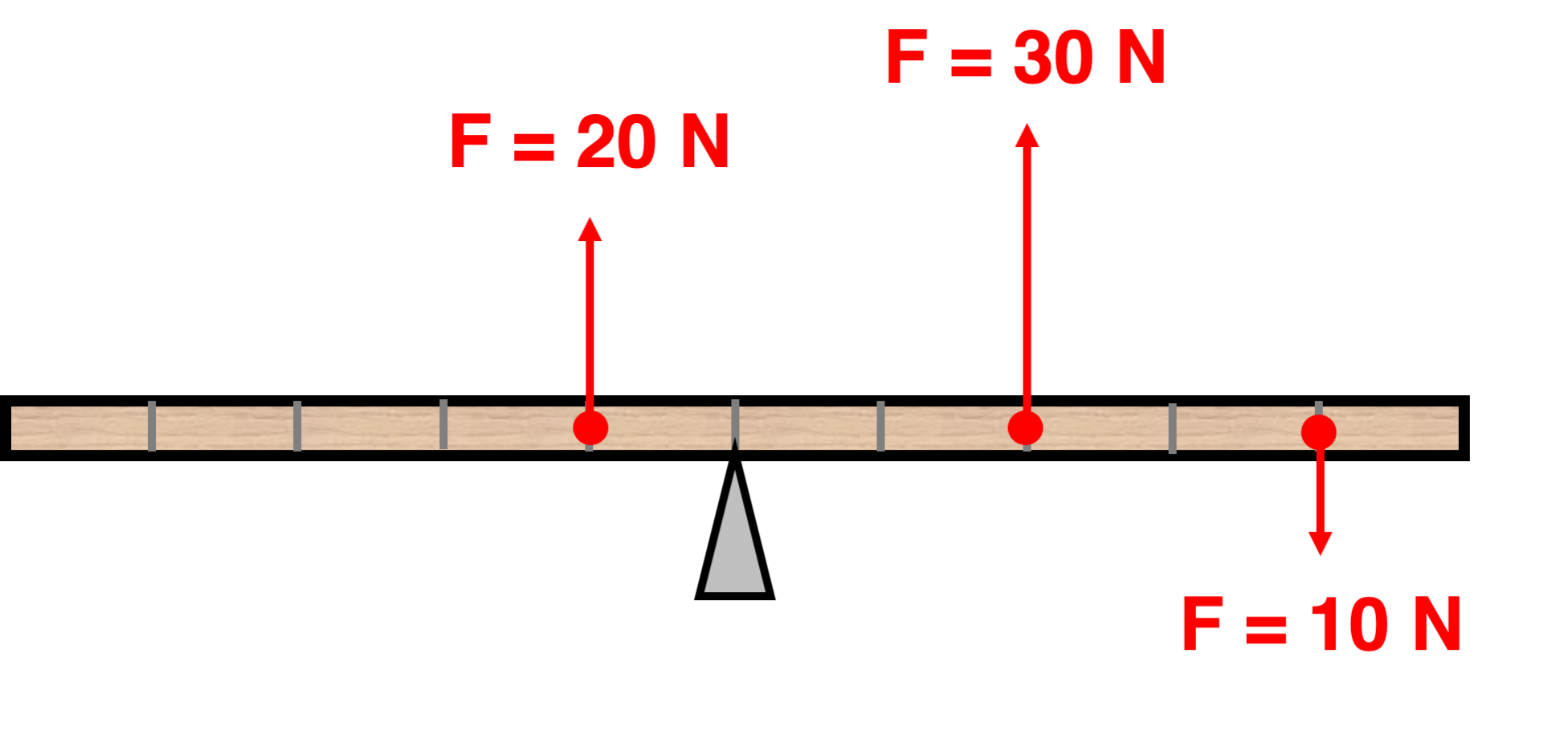

Question 39
The diagram shows three forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?




Question 40

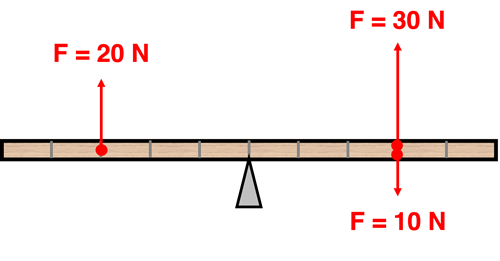

The diagram shows three forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?






Question Group 11
Question 41

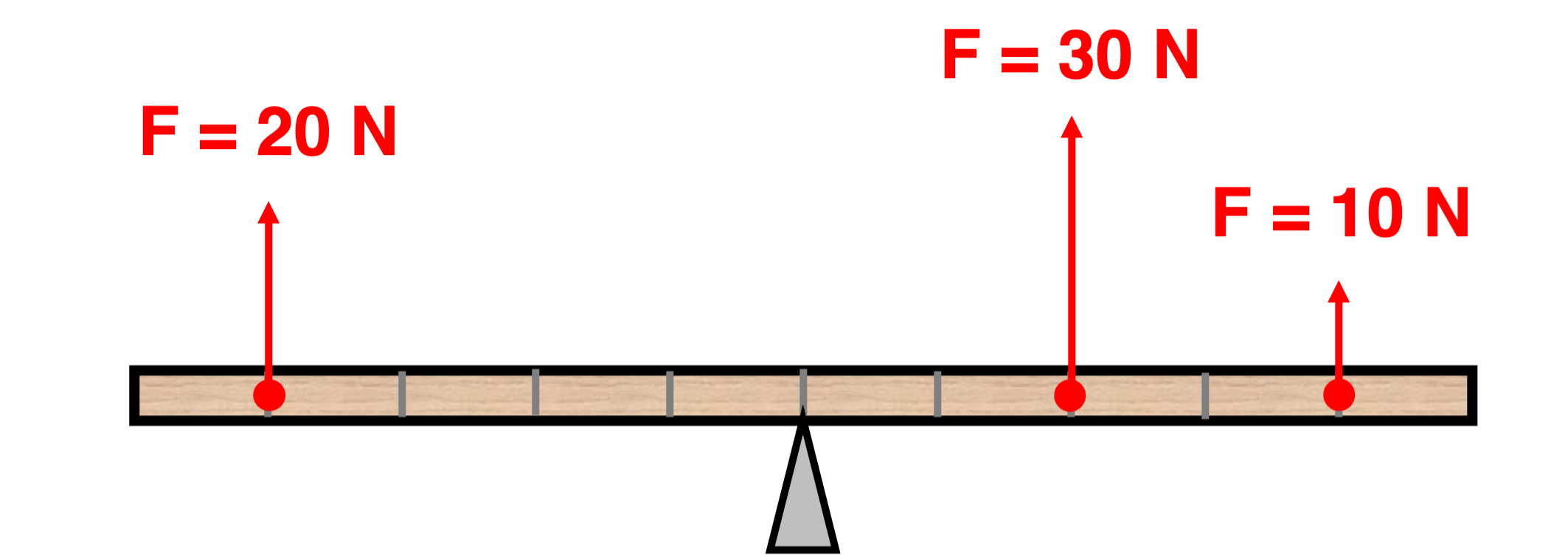

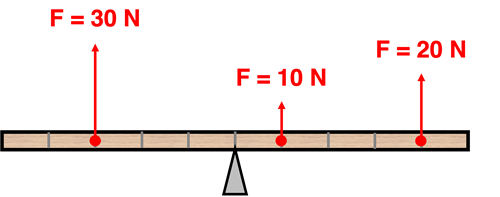

The diagram shows three forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?



Question 42

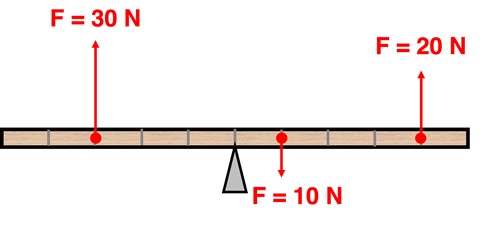

The diagram shows three forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?




Question 43

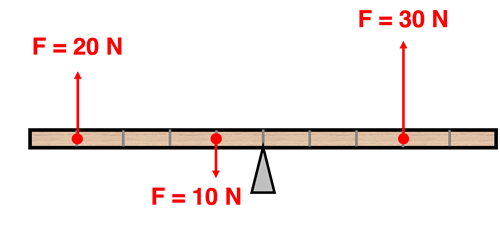

The diagram shows three forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?

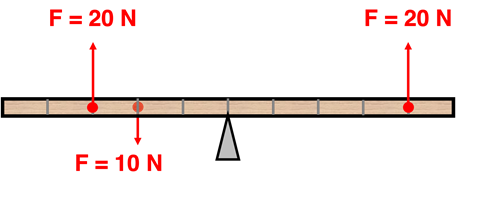

Question 44
The diagram shows three forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?




Question Group 12
Question 45

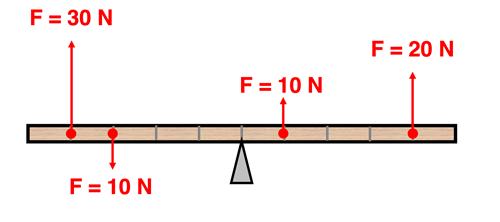

The diagram shows four forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?

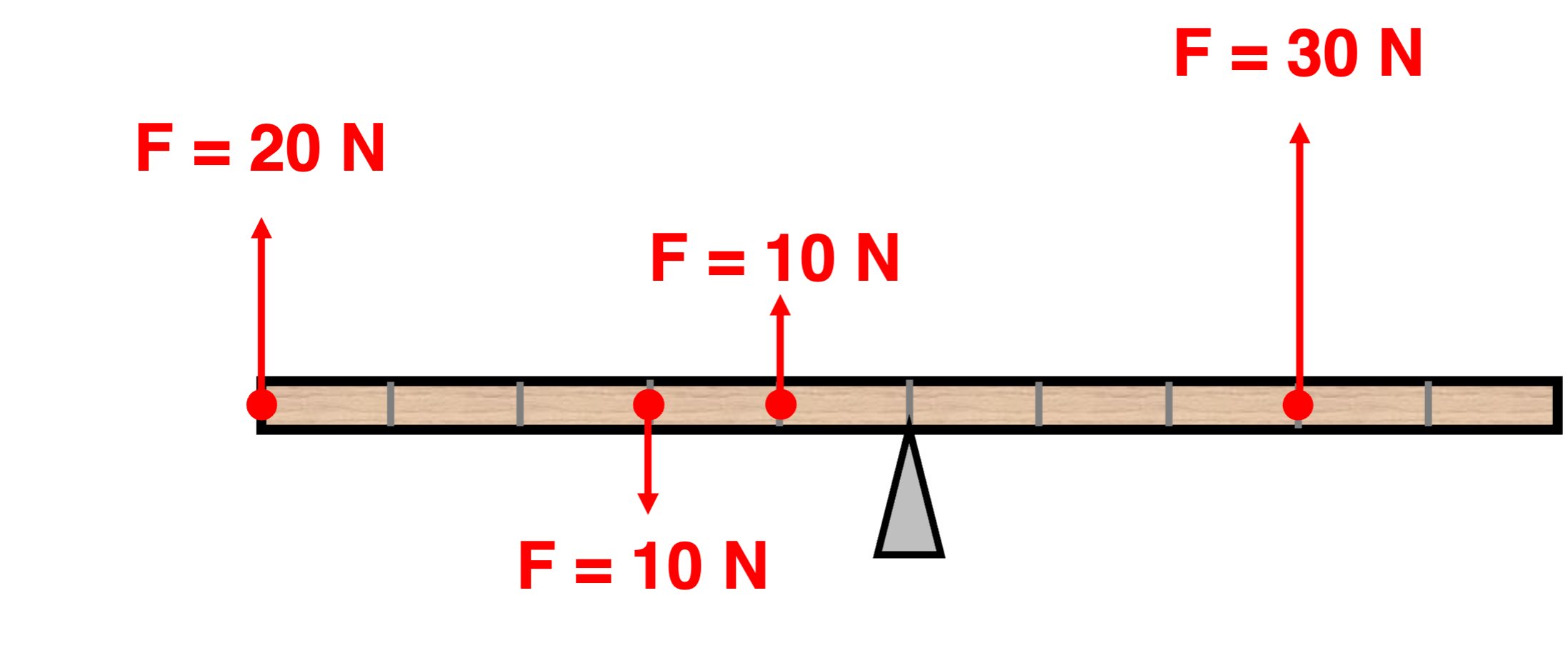

Question 46
The diagram shows four forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?


Question 47

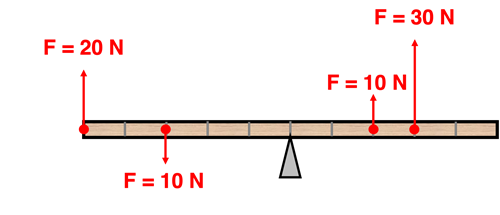

The diagram shows four forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?


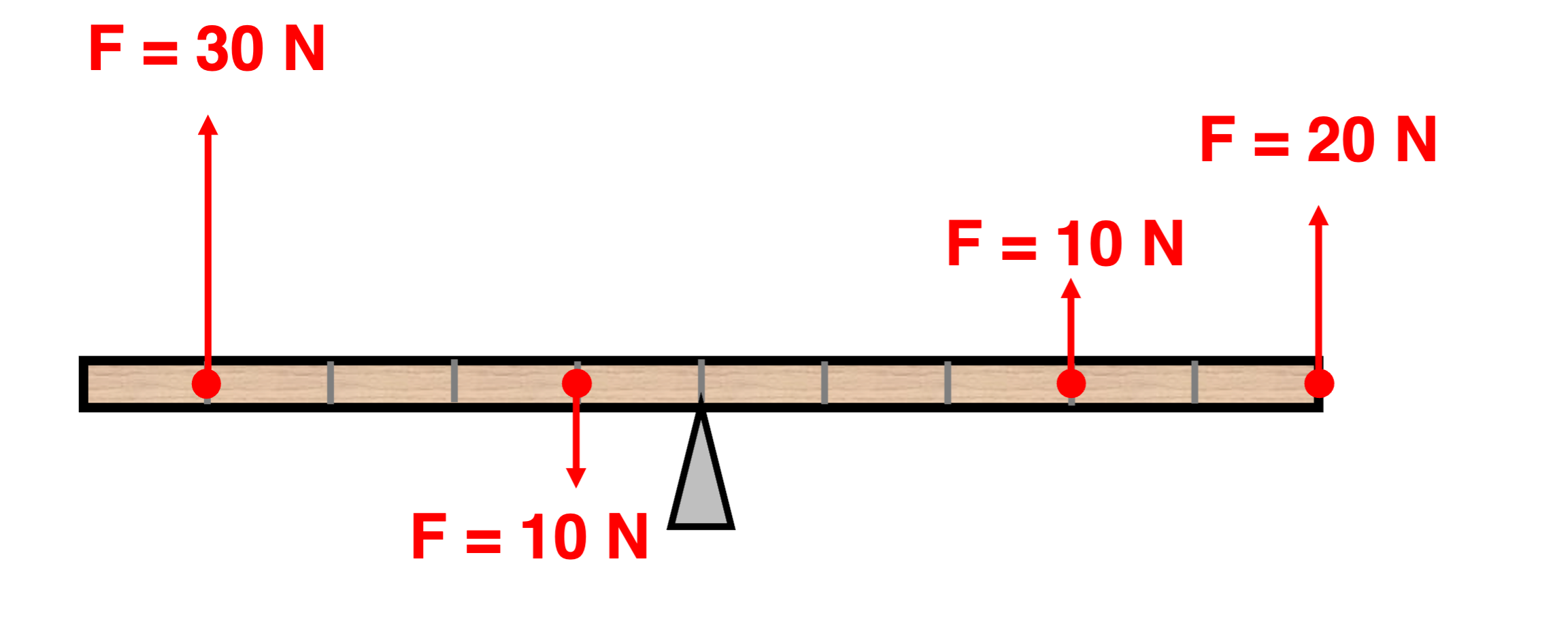

Question 48
The diagram shows four forces and their point of application upon a beam. Each force will result in a torque.

Are these torques balanced or unbalanced?
Will the combined effect of these torques cause the beam to undergo a rotational acceleration?
