Work, Energy, and Power - Lesson 2 - The Work-Energy Relationship

Application and Practice Questions


Lesson 2 has thus far focused on how to analyze motion situations using the work and energy relationship. The relationship could be summarized by the following statements:

There is a relationship between work and mechanical energy change. Whenever work is done upon an object by an external or nonconservative force, there will be a change in the total mechanical energy of the object. If only internal forces are doing work (no work done by external forces), there is no change in total mechanical energy; the total mechanical energy is said to be "conserved." The quantitative relationship between work and the two forms of mechanical energy is expressed by the following equation:

KEi + PEi + Wext = KEf + PEf


Now an effort will be made to apply this relationship to a variety of motion scenarios in order to test our understanding.





Check Your Understanding

Use your understanding of the work-energy theorem to answer the following questions. Then click the button to view the answers.

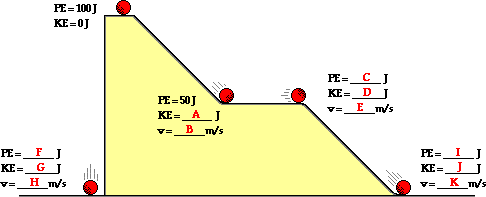

1. Consider the falling and rolling motion of the ball in the following two resistance-free situations. In one situation, the ball falls off the top of the platform to the floor. In the other situation, the ball rolls from the top of the platform along the staircase-like pathway to the floor. For each situation, indicate what types of forces are doing work upon the ball. Indicate whether the energy of the ball is conserved and explain why. Finally, fill in the blanks for the 2-kg ball.


See Answer






2. If frictional forces and air resistance were acting upon the falling ball in #1 would the kinetic energy of the ball just prior to striking the ground be more, less, or equal to the value predicted in #1?

See Answer






Use the following diagram to answer questions #3 - #5. Neglect the effect of resistance forces.




3. As the object moves from point A to point D across the surface, the sum of its gravitational potential and kinetic energies ____.

a. decreases, only

b. decreases and then increases

c. increases and then decreases

d. remains the same


See Answer



4. The object will have a minimum gravitational potential energy at point ____.

a. A

b. B

c. C

d. D

e. E

See Answer





5. The object's kinetic energy at point C is less than its kinetic energy at point ____.

a. A only

b. A, D, and E

c. B only

d. D and E

See Answer





6. Many drivers' education books provide tables that relate a car's braking distance to the speed of the car (see table below). Utilize what you have learned about the stopping distance-velocity relationship to complete the table.


See Answer





7. Some driver's license exams have the following question.

A car moving 50 km/hr skids 15 meters with locked brakes. How far will the car skid with locked brakes if it is moving at 150 km/hr?
See Answer







8. Two baseballs are fired into a pile of hay. If one has twice the speed of the other, how much farther does the faster baseball penetrate? (Assume that the force of the haystack on the baseballs is constant).

See Answer

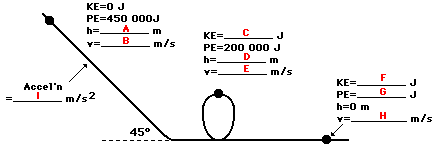

9. Use the law of conservation of energy (assume no friction) to fill in the blanks at the various marked positions for a 1000-kg roller coaster car.








See Answer






10. If the angle of the initial drop in the roller coaster diagram above were 60 degrees (and all other factors were kept constant), would the speed at the bottom of the hill be any different? Explain.

See Answer






11. Determine American ski jumper Lee Ben Fardest's (a mass of approximately 50 kg) speed at locations B, C, D and E.




See Answer






12. An object which weighs 10 N is dropped from rest from a height of 4 meters above the ground. When it has free-fallen 1 meter its total mechanical energy with respect to the ground is ____.

a. 2.5 J

b. 10 J

c. 30 J

d. 40 J

See Answer






13. During a certain time interval, a 20-N object free-falls 10 meters. The object gains _____ Joules of kinetic energy during this interval.

a. 10

b. 20

c. 200

d. 2000

See Answer

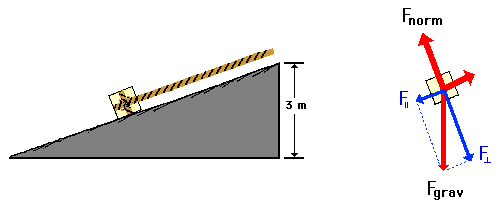

14. A rope is attached to a 50.0-kg crate to pull it up a frictionless incline at constant speed to a height of 3-meters. A diagram of the situation and a free-body diagram are shown below. Note that the force of gravity has two components (parallel and perpendicular component); the parallel component balances the applied force and the perpendicular component balances the normal force.




Of the forces acting upon the crate, which one(s) do work upon it?

See Answer




Based upon the types of forces acting upon the system and their classification as internal or external forces, is energy conserved? Explain.

See Answer




Calculate the amount of work done upon the crate.

See Answer
