The L•O•S•T Art of Image Description (Curved Mirrors)  Concept Builder is comprised of 10 questions. The questions are divided into 5 different Question Groups. There is only one difficulty level. The two questions in the same Question Group are rather similar to one another. The Concept Builder is coded to select at random a question from each group until a student is successful with that group of questions.

Learners do the same thing in each question; they make decisions regarding the characteristics of the images formed by concave and convex mirrors. Those decisions pertain to the general location of the image, the orientation of the image (upright or inverted), the relative size of the image (smaller, larger, or the same size as the object), and the type of image (virtual or real).The questions from each group are shown below. Teachers are encouraged to view the questions in order to judge whether the activity is appropriate for their classes.

The Physics Classroom grants teachers and other users the right to print these questions for private use. Users are also granted the right to copy the text and modify it for their own use. However, this document should not be uploaded to other servers for distribution to and/or display by others. The Physics Classroom website should remain the only website or server from which the document is distributed or displayed. We also provide a PDF that teachers can use under the same conditions. We have included a link to the PDF near the bottom of this page.




The L•O•S•T Art of Image Description


Question Group 1
Question 1

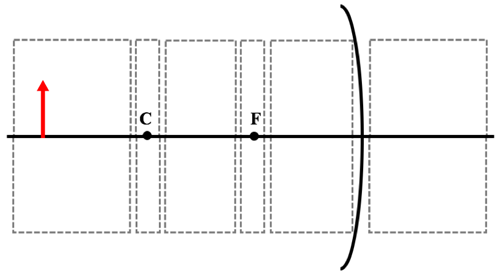

The red arrow represents an object located in the region beyond the center of curvature of a concave mirror. Identify the characteristics of the image that is produced -– location, orientation, size and type.




Question 2

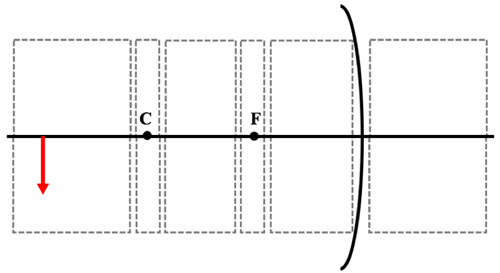

The red arrow represents an object located in the region beyond the center of curvature of a concave mirror. Identify the characteristics of the image that is produced -– location, orientation, size and type.




Question Group 2
Question 3

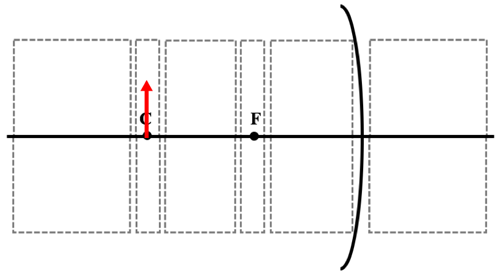

The red arrow represents an object located in the region at the center of curvature of a concave mirror. Identify the characteristics of the image that is produced -– location, orientation, size and type.




Question 4

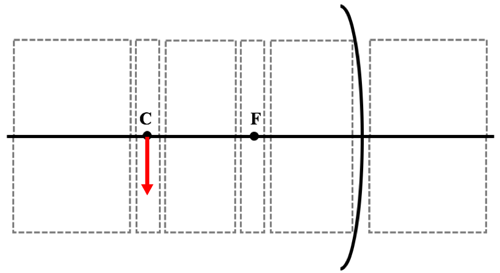

The red arrow represents an object located in the region at the center of curvature of a concave mirror. Identify the characteristics of the image that is produced -– location, orientation, size and type.





Question Group 3
Question 5

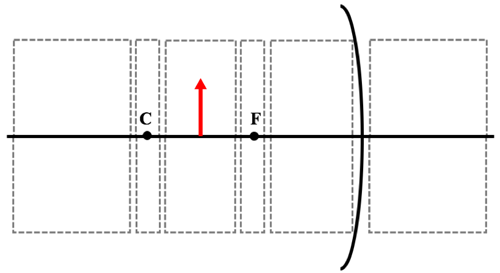

The red arrow represents an object located in the region between the center of curvature and the focal point of a concave mirror. Identify the characteristics of the image that is produced -– location, orientation, size and type.

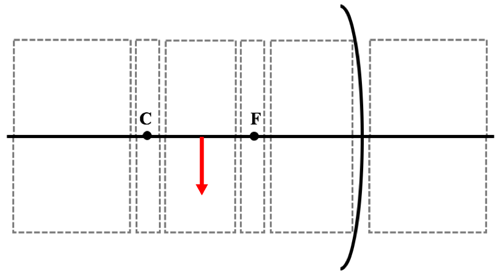

Question 6
The red arrow represents an object located in the region between the center of curvature and the focal point of a concave mirror. Identify the characteristics of the image that is produced -– location, orientation, size and type.





Question Group 4

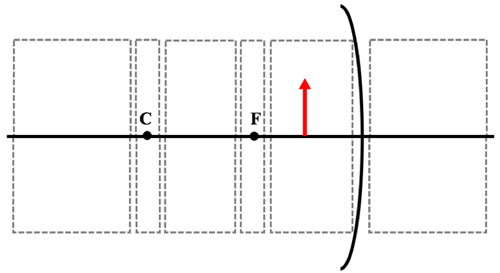

Question 7
The red arrow represents an object located in the region in front of the focal point of a concave mirror. Identify the characteristics of the image that is produced -– location, orientation, size and type.




Question 8

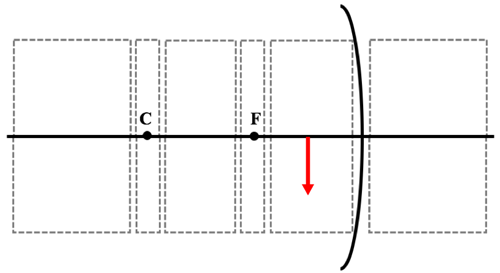

The red arrow represents an object located in the region in front of the focal point of a concave mirror. Identify the characteristics of the image that is produced -– location, orientation, size and type.





Question Group 5
Question 9

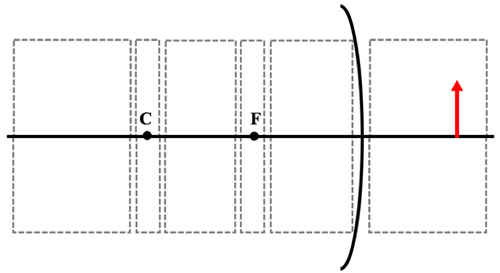

The red arrow represents an object located in front of a convex mirror. Identify the characteristics of the image that is produced -– location, orientation, size and type.





Question 10

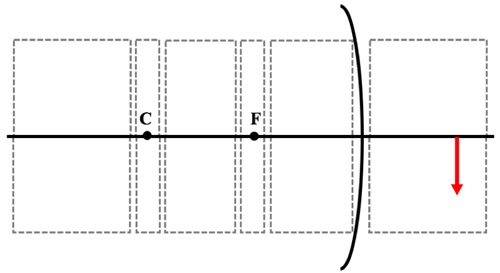

The red arrow represents an object located in front of a convex mirror. Identify the characteristics of the image that is produced -– location, orientation, size and type.
